Discontinued

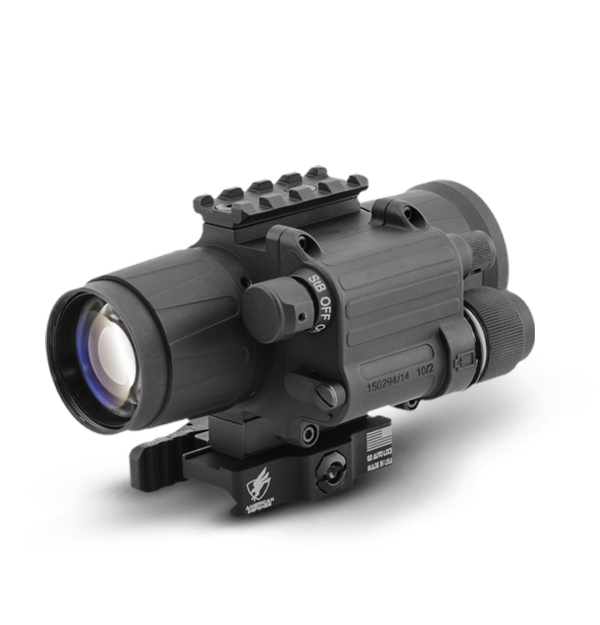

FLIR CO-Mini
Compact Night Vision Clip-On System
Designed for short- to medium-range observation and rapid target acquisition, the FLIR CO-Mini clip-on system converts a standard day optic into a tactical night vision device. The CO-Mini installs in front of magnified day scopes in seconds via objective lens adaptor or quick-release Picatinny mount. Use of the existing day scope reticle allows consistent shot placement without the need to rezero.
Compact, Instantaneous, Tactical Night Vision
Quick-release Picatinny mount and day scope reticle make installation and shot precision possible in seconds.
Compact design and clip-on mounting allow familiar shooting position, release, and follow through.
Numerous Gen 2+ and Gen 3 image intensifier tube options, including “Quick Silver” and “Ghost” black and white displays, cater to performance demands and user-preference.
Spécifications
| Capteurs et optique | |
|---|---|
| Champ de vision | 22° |
| Contrôle de la luminosité automatique | Yes |
| Diamètre de pupille de sortie [mm] | 27.5 mm |
| Dégagement oculaire | - |
| Grossissement | 1x (recommended to use with up to 10x day time optics) |
| Génération IIT | Gen 2+ ID (Improved Definition) MG |
| Illuminateur infrarouge | Detachable Long Range IR |
| Plage de mise au point | 20 m to Infinity |
| Réglage dioptrique | - |
| Résolution | 47-54 lp/mm |
| Seuil lumière vive | Yes |
| Système d’objectif | F/1.25; 38 mm |
| Type de photocathode | Multi-Alkali |
| Spécifications environnementales et validations | |
|---|---|
| Température de fonctionnement | -40°C to +50°С (-40°F to +122°F) |
| Température de stockage | -50°C to +50°С (-58°F to +122°F) |
| Alimentation | |
|---|---|
| Alimentation | CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.2V (1) |
| Autonomie de la batterie | 60 hrs (3V) / 40 hrs (1.5V) |
| Indicateur de batterie faible | Yes (In FOV) |
| Mise hors tension automatique | Yes |
| Stockage des fichiers et communications | |
|---|---|
| Télécommande | Wireless |
| UI-UX | |
|---|---|
| Contrôle de gain manuel | Yes |
| Couleur du réticule | - |
| Indicateur IR | No |
| Présentation du système | |
|---|---|
| Dérivation_Réglage élévation | - |
| Garantie | 2 Years |
| Hauteur de l'axe de l'optique au-dessus du rail | - |
| Type de réticule | - |
| Caractéristiques physiques | |
|---|---|
| Dimensions (L x l x H) | 125 × 68 × 55 mm (4.9 × 2.7 × 2.2 in) |
| Montage sur trépied | - |
| Poids du produit | 0.43 kg (0.95 lbs) |
| Accessoires | |
|---|---|
| Accessoires en option | Scope Mounting System 1 #40, Scope Mounting System 2 #41, Scope Mounting System 3 #42, Scope Mounting System 4 #43, Scope Mounting System 6 #44, Extended Rail Adapter #85, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, Mount for IR illuminator #60, Mil-Standard Hard Shipping/Storage Case #102 |
| Accessoires inclus | Battery adapter CR123A 3V / AA 1.5V, XLR-IR850 Detachable X-Long Range Infrared Illuminator, Battery, Light Suppressor for Day Scope, AWReC (Advanced Wireless Remote Control) #94, Quick Release Mount, Instruction Manual with Warranty Card, Soft carrying Case, Picatinny adapter for AWReC (Advanced Wireless Remote Control, Special Wrench, Packing Box, Light-Suppressor 3, Light-Suppressor 2, Light-Suppressor 1, Lens Tissue |
