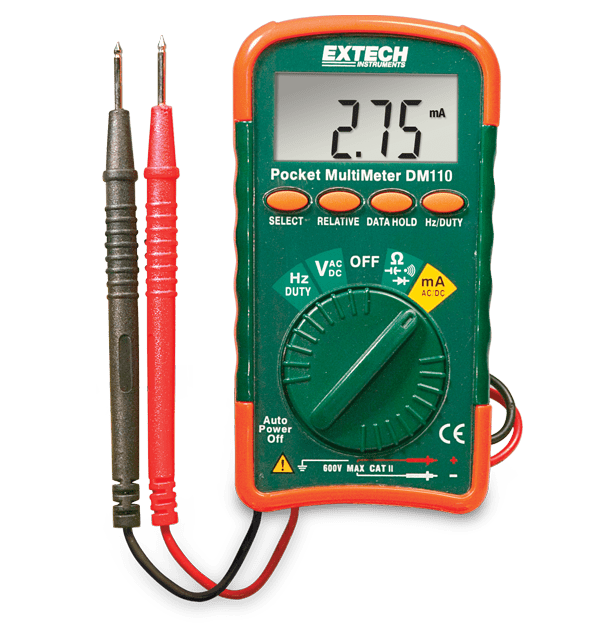

Extech DM110
Mini Pocket MultiMeter
Extech's DM110 offers full function versatility and the most pocket-friendly multimeter size available. The compact, autoranging DM110 digital Mini Multimeter is equipped with capabilities that are perfect for a electrical hobbyist, electronics tinkerer, or DIYer. Use this meter to perform more in depth testing to troubleshoot anything connected to an outlet, such as any electronic devices found around the home and garage. The DM110 is great for automotive and marine electrical applications, A/V projects, Arduino projects, and secondary home wiring systems like security alarms and thermostat circuits. It includes a protective rubber holster with storage clips to retain the integrated test leads, soft carrying case, CR2032 button battery, user manual, and one year limited warranty.
Spécifications
| Spécifications générales | |
|---|---|
| Capacitance | 100µF |
| Capacité de résolution maximale | 0.001nF |
| Continuité | Yes |
| Courant CA | 400mA |
| Courant CC | 400mA |
| Fréquence | 5Hz to 10MHz |
| Précision de base de la fréquence | ±2% |
| Précision de base de la tension CA | ±2.3% |
| Précision de base de la tension CC | ±1.3% |
| Précision de base du courant CA | ±2.5% |
| Précision de base du courant CC | ±2.0% |
| Précision de base du cycle de service | ±1.2% |
| Rapport cyclique | 0.1% to 99.9% |
| Résistance | 400 to 40MΩ |
| Résolution maximale de la fréquence | 0.001Hz |
| Résolution maximale de la résistance | 0.1Ω |
| Résolution maximale de la tension CA | 1mV |
| Résolution maximale de la tension CC | 1mV |
| Résolution maximale du courant CA | 0.01mA |
| Résolution maximale du courant CC | 0.01mA |
| Résolution maximale du cycle de service | 0.10% |
| Tension CA | 500V |
| Tension CC | 500V |
| Test de diodes | Yes |
| Détails supplémentaires | |
|---|---|
| Alimentation | 1 × CR2032 (3V) battery |
| Catégorie de sécurité | CATII - 600V |
| Certifications | CE, UL |
| Dimensions | 4.25 × 2.2 × 0.5”(108 × 56 × 11.5mm) |
| Garantie | 2 years |
| Poids | 1.7oz (50g) |
Resources & Support
User Manual
Manuel d’utilisation de la Extech DM110
User Manual
Extech DM110 User Manual
Datasheet
Extech DM110 Datasheet
