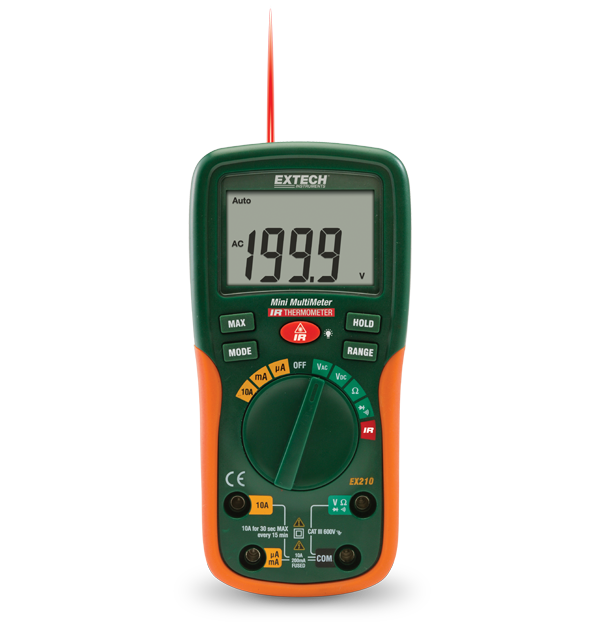

Extech EX210
8 Function Mini Digital MultiMeter with IR Thermometer
The Extech EX210 is a Mini Digital MultiMeter with a built in IR Thermometer. The meter can quickly identify overheating motors and locate hot spots on electrical panels or HVAC vents without contact. It measures AC/DC voltage, AC/DC current, resistance, and temperature (IR). The EX210’s rugged design incorporates a 2000 count large backlit dual LCD with easy to read digits, low current capability measure down to 0.1 µA, and input fuse protection. This meter also features max hold and data hold capabilities as well as auto power off. The EX210 comes complete with test leads and a 9 V battery.
Spécifications
| Spécifications générales | |
|---|---|
| Continuité | Yes |
| Courant CA | 0.1 µA to 10A |
| Courant CC | 0.1 µA to 10A |
| Précision de base de la température (IR) | -5 to 446 °F (-20 to 230 °C) |
| Précision de base de la tension CC | ±0.5% |
| Résistance | 0.1Ω to 20MΩ |
| Tension CA | 0.1mV to 600V |
| Tension CC | 0.1mV to 600V |
| Test de diodes | Yes |
| Détails supplémentaires | |
|---|---|
| Alimentation | 1 × 9V battery |
| Catégorie de sécurité | CATIII - 600V |
| Certifications | CE, ETL |
| Dimensions | 5.8 × 2.9 × 1.6" (147 × 76 × 42mm) |
| Garantie | 2 years |
| Poids | 9.17oz (260g) |
Resources & Support
User Manual
Manuel d’utilisation de la Extech EX210 EX210T
User Manual
Extech EX210 EX210T User Manual
Certification
Extech EX210 Declaration of Conformity
Datasheet
Extech EX210 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
