Extech EX411
8 Function True RMS Professional MultiMeter

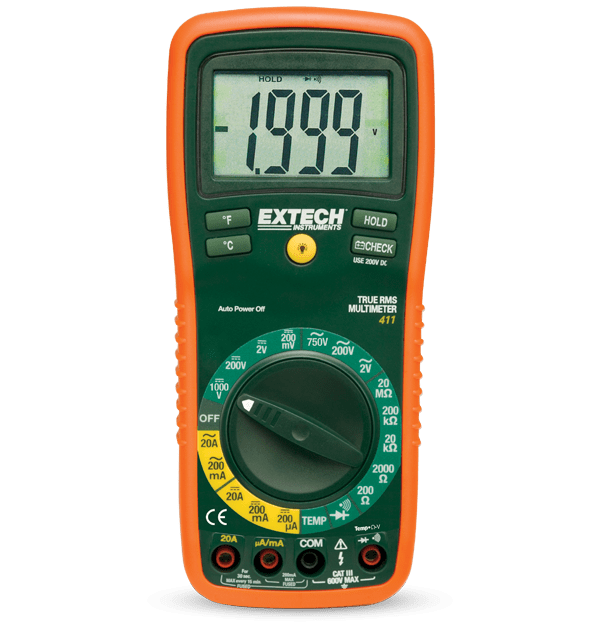

The Extech EX411 offers multiple functions so you can carry one meter into the field instead of several. The manual ranging EX411 measures AC/DC voltage and current, resistance, diode, and continuity, all with ± 0.5 percent basic accuracy. The unit has low current capability, measuring down to 0.1 µA, and features input fuse protection and misconnection warnings. A Type K thermometer is built in for surface or air temperature measurements. Comes with CAT III test leads, stand, hanging strap, holster with builti n test lead storage, Type K bead wire temperature probe, and battery.
Spécifications
| Spécifications générales | |
|---|---|
| Continuité | Yes |
| Courant CA | 0.1mA to 20A |
| Courant CC | 0.1µA to 20A |
| Précision de base de la tension CA | ±0.5% |
| Précision de base de la tension CC | ±0.3% |
| Précision de base du courant CA | ±0.5% |
| Précision de base du courant CC | ±0.5% |
| Résistance | 0.1Ω to 20MΩ |
| Résolution maximale de la température (type K) | -4 to 1382 °F (-20 to 750 °C) |
| Tension CA | 1mV to 750V |
| Tension CC | 0.1mV to 1000V |
| Test de diodes | Yes |
| Valeurs efficaces (TRMS) | Yes |
| Détails supplémentaires | |
|---|---|
| Alimentation | 1 × 9V battery |
| Catégorie de sécurité | CATIII - 600V, CATIV - 1000V |
| Certifications | UL |
| Dimensions | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
| Garantie | 2 years |
| Poids | 0.75lbs (342g) |
Ressources et assistance
User Manual
Manuel d’utilisation de la Extech EX411
User Manual
Extech EX411 User Manual
Datasheet
Extech EX4xx Datasheet
