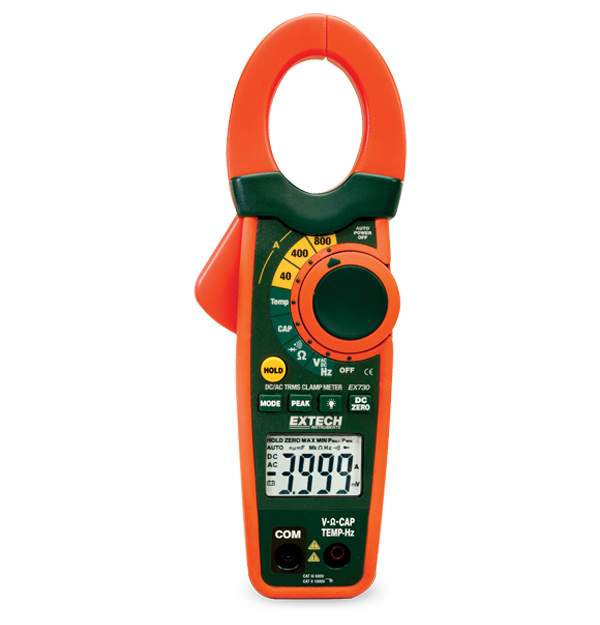

Extech EX730
800A AC/DC Clamp Meter
The Extech EX730 is an 800 A AC Clamp Meter with capacitance and frequency functions. It is capable of measuring AC/DC current and voltage, resistance, frequency, capacitance, temperature, diode, and continuity. The EX730 features double molded housing for better grip and one-handed operation, as well as a large LCD display with bright backlighting. The EX730 has a 30 mm (1.2 in) circular jaw opening for large cables (500 MCM) and comes complete with test leads, 9 V battery, Type K bead wire probe, and carrying case.
Spécifications
| Spécifications générales | |
|---|---|
| Capacitance | 0.001nF to 40,000µF |
| Continuité | Yes |
| Courant CA | 0.01 to 800A |
| Courant CC | 0.1 to 800A |
| Courant d'appel | Yes |
| Fréquence | 0.001 to 4kHz |
| Précision de base de la fréquence | ±1.5% |
| Précision de base de la tension CA | ±1.5% |
| Précision de base de la tension CC | ±1.5% |
| Précision de base du courant CA | ±2.5% |
| Précision de base du courant CC | ±2.5% |
| Résistance | 0.1 to 40MΩ |
| Résolution maximale de la température (type K) | -4 to 1400°F (-20 to 760°C) |
| Taille de la mâchoire | 1.2" (30mm), conductors up to 500MCM |
| Température (Type N) | ±(3% of reading + 9°F/5°C) |
| Tension CA | 0.1mV to 600V |
| Tension CC | 0.1mV to 600V |
| Test de diodes | Yes |
| Valeurs efficaces (TRMS) | Yes |
| Détails supplémentaires | |
|---|---|
| Alimentation | 1 × 9V battery |
| Catégorie de sécurité | CATIII - 600V |
| Certifications | CE, UL |
| Dimensions | 9 × 3.1 × 1.9" (229 × 80 ×49mm) |
| Garantie | 2 years |
| Poids | 10.7 oz (303g) |
