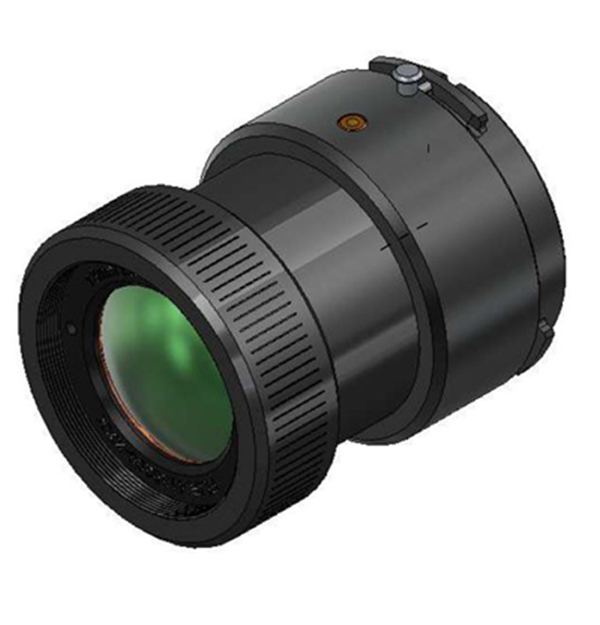

Objectif de mise au point manuelle MWIR (3-5 μm) de 13 mm (4255676)

Manuel FPO 3-5 μm 13 mm f/2.5

Objectif à mise au point manuelle de 13 mm MWIR (3-5 μm) f/2.5 avec monture d’objectif à baïonnette à utiliser sur les caméras infrarouges à ondes moyennes haute performance (MWIR) Flir, y compris A67xx MWIR

Spécifications

Données image et optiques
Bande spectrale 3 à 5 µ
Champ de vision (H et L et P) 40, 5 (H)
32, 9 (V)
50, 6 (D)
Diamètre 57,2 mm (2,25 po)
Distance hyperfocale 2,8 m
Distorsion <1 %
Longueur À l’extérieur de la caméra : 67,1 mm ( 2,64 po)
Longueur focale 13 mm
Mise au point Manuel
Ouverture f 2, 5
Plage de mise au point 100 mm à∞
Spécifications environnementales et certifications
Plage de températures de fonctionnement -20 °C à 70 °C (68 °F à 158 °F)
Plage de températures de stockage -40 °C à 85 °C (-40 °F à 185 °F)
Informations générales
Poids ~0,38 kg (0,84 lb)
Transmission moyenne 95 %

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
