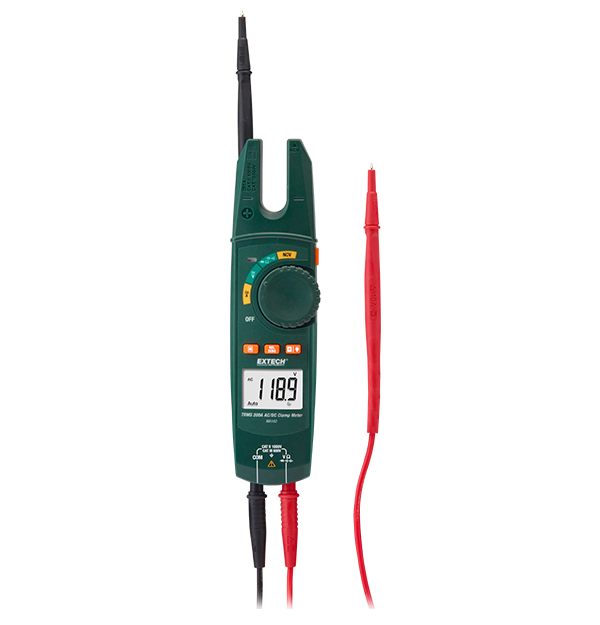

Extech MA160
True RMS 200A AC/DC Open Jaw Clamp Meter
The Extech MA160 is an open jaw True RMS 200 A AC/DC Clamp Meter. Its open jaw design provides quick current measurements in tight locations without breaking the circuit. True RMS provides accurate readings on noisy, distorted, or non-sinusoidal waveforms. The convenient built in non contact voltage (NCV) detector allows quick detection of live voltages while the LED backlight and flashlight help take measurements in dimly lit environments. The MA160 also features AC voltage to 750 V, DC voltage to 1000 V, resistance, capacitance, continuity, and diode test as well as an auto power off and ergonomic housing with built in test lead holders. Complete with test leads, two AA batteries, and pouch.
Spécifications
| Spécifications générales | |
|---|---|
| Capacitance | 60mF |
| Capacité de résolution maximale | 0.01nF |
| Continuité | Yes |
| Courant CA | 200A |
| Courant CC | 200A |
| Détecteur de tension sans contact (NCV) | 100 to 750V |
| Précision de base de la tension CA | ±(2.5% of reading + 3 digits) |
| Précision de base de la tension CC | ±(0.8% of reading + 3 digits) |
| Précision de base du courant CA | ±(2.5% of reading + 5 digits) |
| Précision de base du courant CC | ±(2.5% of reading + 5 digits) |
| Résistance | 60MΩ |
| Résolution maximale de la résistance | 0.1Ω |
| Résolution maximale de la tension CA | 1mV |
| Résolution maximale de la tension CC | 1mV |
| Résolution maximale du courant CA | 0.1A |
| Résolution maximale du courant CC | 0.1A |
| Taille de la mâchoire | 0.57" (14.5mm) |
| Tension CA | 750V |
| Tension CC | 1000V |
| Test de diodes | Yes |
| Valeurs efficaces (TRMS) | Yes |
| Détails supplémentaires | |
|---|---|
| Alimentation | 2 × AA (1.5V) batteries |
| Catégorie de sécurité | CATIII - 600V |
| Certifications | CE, ETL |
| Dimensions | 8.3 × 2.1 × 1.4" (210 × 53 × 35mm) |
| Garantie | 2 years |
| Poids | 5.8oz (164g) |
