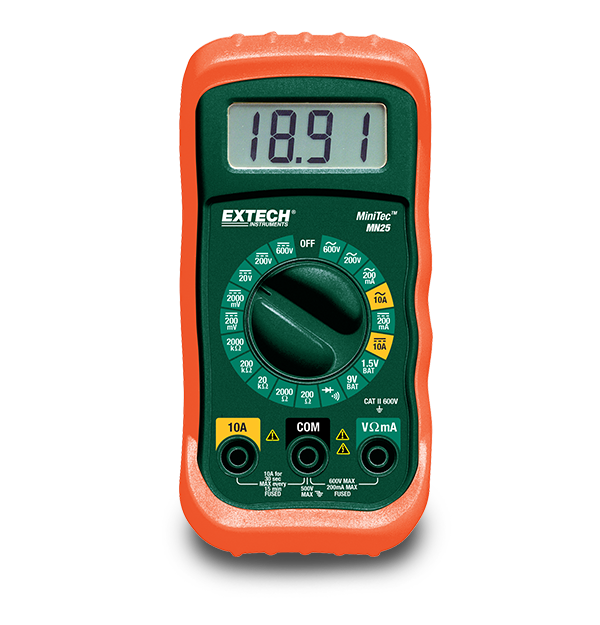

Extech MN25
MiniTec™ Digital MultiMeter
The Extech MN25 MiniTec™ Digital Multimeter has a large, 2,000 count LCD display with a 10 A fuse protection. This meter reads the AC/DC voltage and current, resistance, diode, and continuity. It is capable of running a 1.5 V and 9 V battery test function, and it comes with an overload protection feature with the overload indication signal. This rugged, pocket sized meter is manual ranging and runs eight different functions. The MN25 comes complete with a protective holster, stand, one 9 V battery, and the needed test leads.
Spécifications
| Spécifications générales | |
|---|---|
| Continuité | Yes |
| Courant CA | 200 mA, 10 A |
| Courant CC | 200 mA, 10 A |
| Précision de base de la tension CA | ±1.5% |
| Précision de base de la tension CC | ±0.5% |
| Précision de base du courant CA | ±1.8% |
| Précision de base du courant CC | ±1.2% |
| Résistance | 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ |
| Résolution maximale de la résistance | 0.1 Ω |
| Résolution maximale de la tension CA | 0.1 V |
| Résolution maximale de la tension CC | 0.1 mV |
| Résolution maximale du courant CA | 1 µA |
| Résolution maximale du courant CC | 1 µA |
| Tension CA | 200 V, 600 V |
| Tension CC | 200 mV, 2000 mV, 20 V, 200 V, 600 V |
| Test de diodes | Yes |
| Test de la batterie | 9 V, 1.5 V |
| Détails supplémentaires | |
|---|---|
| Alimentation | 1 × 9V battery |
| Catégorie de sécurité | CATII - 600V |
| Certifications | UL |
| Dimensions | 4.8 × 2.4 × 1.6" (122 × 61 × 40 mm) |
| Garantie | 1 year |
| Poids | 9.17 oz (260 g) |
