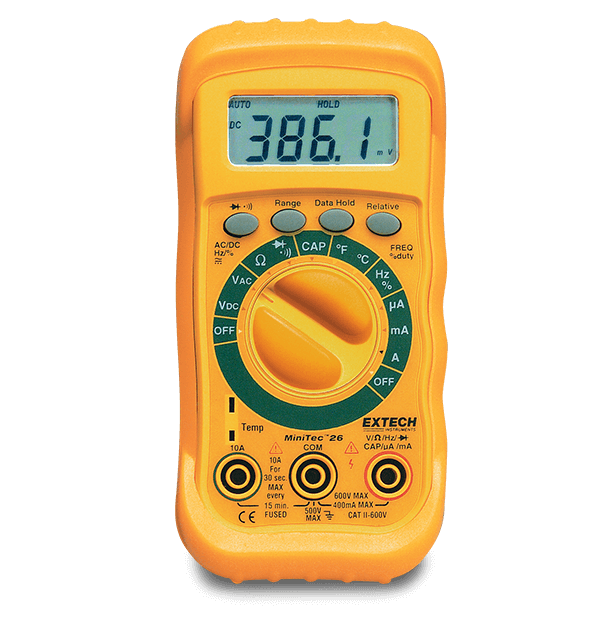

Extech MN26T
MiniTec™ Autoranging Digital MultiMeter
Small on size, big on versatility, the autoranging Extech MN26T MiniTec™ Digital Multimeter is equipped with extensive capabilities, making it a popular choice for technicians, electrical hobbyists/tinkerers, and DIYers alike. You can use the MN26T the way you would use a bigger meter, but you can also keep it with you for quick testing, on the road repairs, or in the field service calls. Use it to measure AC/DC voltage and current, as well as resistance, capacitance, frequency, and duty cycle. Test diodes and continuity, and use functions like data hold and relative mode. Even measure temperature with the supplied Type K bead wire temperature probe. The 4 digit, 4,000 count display is easy to read, and the built in tilt stand is handy for bench work. Comes with test leads, Type K thermocouple probe, two AAA batteries, and carrying case.
Spécifications
| Spécifications générales | |
|---|---|
| Capacitance | 200ΩF |
| Capacité de résolution maximale | 0.001nF |
| Continuité | Yes |
| Courant CA | 10A |
| Courant CC | 10A |
| Fréquence | 10MHz |
| Précision de base de la fréquence | ±1.5% |
| Précision de base de la température (type N) | 1 ° |
| Précision de base de la tension CA | ±1.5% |
| Précision de base de la tension CC | ±1.0% |
| Précision de base du courant CA | ±1.8% |
| Précision de base du courant CC | ±1.5% |
| Précision de base du cycle de service | ±1.2% |
| Rapport cyclique | 0.1% to 99.9% (0.1%) |
| Résistance | 40MΩ |
| Résolution maximale de la fréquence | 0.001Hz |
| Résolution maximale de la résistance | 0.1Ω |
| Résolution maximale de la température (type K) | 0 to 1400 °F (1 °), 0 to 760 °C |
| Résolution maximale de la tension CA | 0.1mV |
| Résolution maximale de la tension CC | 0.1mV |
| Résolution maximale du courant CA | 0.1µA |
| Résolution maximale du courant CC | 0.1µA |
| Température (Type N) | ±3.0% |
| Tension CA | 600V |
| Tension CC | 600V |
| Test de diodes | Yes |
| Détails supplémentaires | |
|---|---|
| Alimentation | 2 × AAA (1.5V) batteries |
| Catégorie de sécurité | CATII - 600V |
| Certifications | CE, ETL |
| Dimensions | 4.8 × 2.4 × 1.6" (122 × 61 × 40mm) |
| Garantie | 2 years |
| Poids | 9.17oz (260g) |
| Écran | 4000-count segment LCD |
