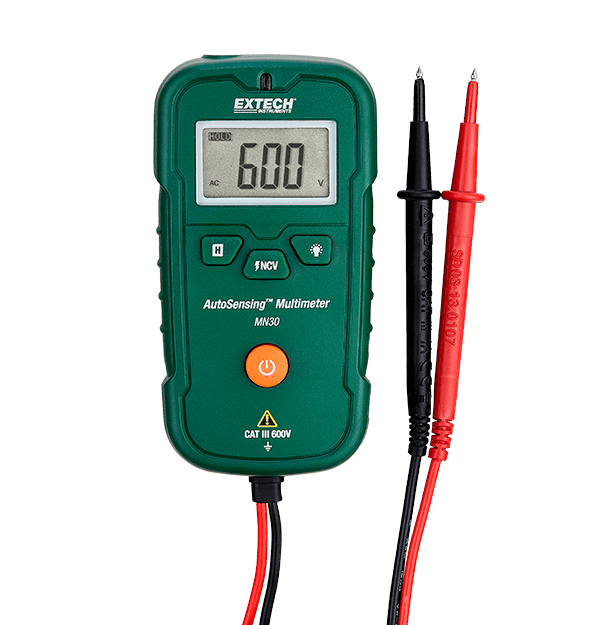

Extech MN30
True RMS AutoSensing™ Multimeter + NCV
The Extech MN30 is a convenient pocket multimeter with an AutoSensing™ feature. The AutoSensing™ feature enables the meter to recognize inputs and automatically switch to the correct mode of operation (i.e. voltage to resistance measurements). The true RMS AC voltage measurement allows for accurate readings regardless of waveforms. The built in, non-contact voltage (NCV) detector allows for quick detection of live voltage. Convenient LED flashlight illuminates dimly lit area.
Spécifications
| Spécifications générales | |
|---|---|
| Continuité | <30Ω (beeper) |
| Détecteur de tension sans contact (NCV) | 50 to 600VAC |
| Précision de base de la tension CA | ±(1.5% of reading + 3 digits) |
| Précision de base de la tension CC | ±(1.5% of reading + 3 digits) |
| Résistance | 1Ω to 10MΩ |
| Résolution maximale de la résistance | 1Ω |
| Résolution maximale de la tension CA | 0.01V |
| Résolution maximale de la tension CC | 0.01V |
| Tension CA | 600V |
| Tension CC | 600V |
| Valeurs efficaces (TRMS) | Yes |
| Détails supplémentaires | |
|---|---|
| Alimentation | 2 × AAA (1.5V) batteries |
| Catégorie de sécurité | CATIII - 600V |
| Certifications | CE, ETL |
| Dimensions | 4.8 × 2.6 × 1.4" (123 × 65 × 35mm) |
| Garantie | 2 years |
| Poids | 50V to 600V |
