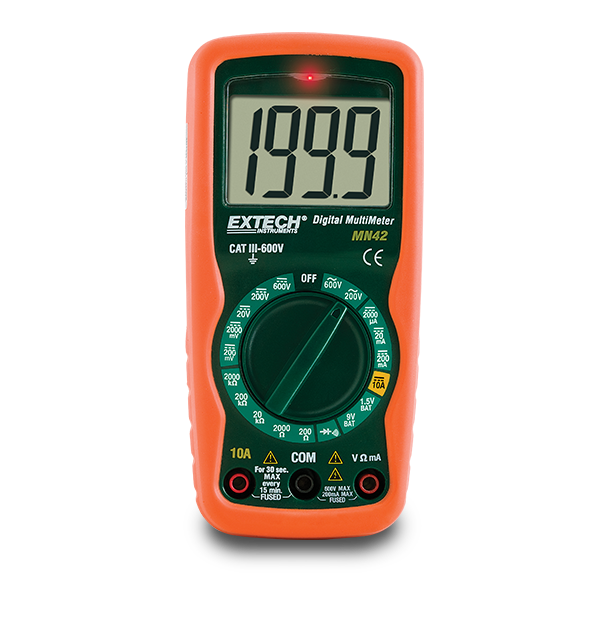

Extech MN42
8 Function Compact MultiMeter + NCV
The compact, manual-ranging Extech MN42 Compact Multimeter is equipped with capabilities a tradesman or technician can use every day, while also perfect for any hobbyist, hacker/maker, or DIYer working on home improvement and A/V projects. Also included is a built in, non contact voltage detector (from 100 VAC to 600 VAC). Freely measure AC/DC voltage, DC current, and resistance, as well as conduct continuity, diode, and battery test. Complete with test leads, 9 V battery, and carrying case.
Spécifications
| Spécifications générales | |
|---|---|
| Continuité | Yes |
| Courant CC | 10A |
| Détecteur de tension sans contact (NCV) | 100 to 600VAC |
| Résistance | 2MΩ |
| Résolution maximale de la résistance | 0.1Ω |
| Résolution maximale de la tension CA | 0.1V |
| Résolution maximale de la tension CC | 0.1mV |
| Résolution maximale du courant CC | 1µA |
| Tension CA | 600V |
| Tension CC | 600V |
| Test de diodes | Yes |
| Test de la batterie | 1.5V / 9V |
| Détails supplémentaires | |
|---|---|
| Alimentation | 1 × 9V battery |
| Catégorie de sécurité | CATIII - 600V |
| Certifications | CE |
| Dimensions | 5.9 × 2.75 × 1.8" (150 × 70 × 48mm) |
| Garantie | 2 years |
| Poids | 9oz (255g) |
| Écran | 2000-count segment LCD |
Resources & Support
User Manual
Extech MN42 User Manual
Datasheet
Extech MN42-MN47 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
