Extech MO297
Pinless Moisture Psychrometer with IR Thermometer and Bluetooth METERLiNK™

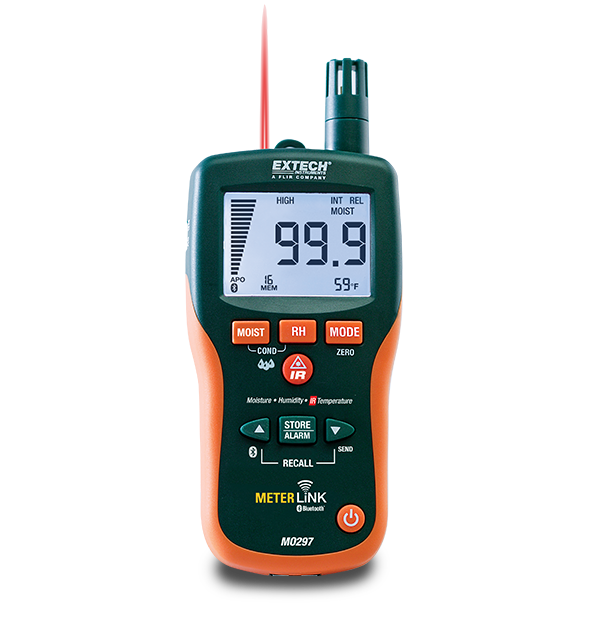

The Extech MO297 is an 8 in 1 Pinless Moisture Psychrometer with a built in infrared (IR) thermometer and Bluetooth MeterLink™ transmitter. It can wirelessly transmits moisture and humidity data to select FLIR thermal imaging IR cameras to incorporate meter readings with thermal images. The pinless moisture sensor allows users to measure moisture in various types of wood and building materials with virtually no surface damage. A remote pin-type probe can be used for contact moisture readings in hard to reach or hazardous areas. Complete with the pin probe cable, 9 V battery, and a case.
Spécifications
| Spécifications générales | |
|---|---|
| Bluetooth METERLiNK™ | Yes |
| Connectivité sans fil | Bluetooth |
| Contenu en humidité WME (Pin) | 0 to 99.9% |
| Humidité relative | 0 to 100% |
| Mémoire | Manually store/recall 20 data readings |
| Point de rosée | -22 to 199 °F (-30 to 100 °C) |
| Pression de vapeur | 0 to 20.0kPA |
| Profondeur de mesure | up to 0.75" (19mm) |
| Précision de base de la température (IR) | -4 to 392 °F (-20 to 200 °C) |
| Précision de base de l’humidité relative | ±3% |
| Précision de base du contenu en humidité WME (Pin) | ±5% |
| Rapport distance/cible | 8:1 |
| Résolution maximale de la température (air) | ±3.5% or ±9°F(4.5°C) whichever greater |
| Résolution maximale de la teneur en humidité relative (sans Pin) | 0.1 |
| Résolution maximale du contenu en humidité WME (Pin) | 0.1 |
| Température (air) | -20 to 170 °F (-29 to 77 °C) |
| Température (air) Précision de base | ±3.6°F (2.0°C) |
| Température (air) Résolution maximale | 0.1°F/°C |
| Température (RTD) | 0.1°F/°C |
| Teneur relative en humidité (sans Pin) | 0 to 99.9 |
| Type de capteur | Replaceable threaded contact pins, non-penetrating electromagnetic sensor pad |
| Vapeur d’eau | 0 to 999gpp (0 to 160g/kg) |
| Émissivité | 0.95 fixed |
| Détails supplémentaires | |
|---|---|
| Alimentation | 1 × 9V battery |
| Certifications | CE |
| Dimensions | 6.5 × 2.8 × 1.5" (165 × 70 × 38) |
| Garantie | 2 years |
| Poids | 7.4oz (210g) |
Resources & Support
User Manual
Manuel d’utilisation de la Extech MO297
User Manual
Extech MO297 User Manual
Datasheet
Extech MO297 Datasheet
Certification
Extech MO297 Declaration of Conformity
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
