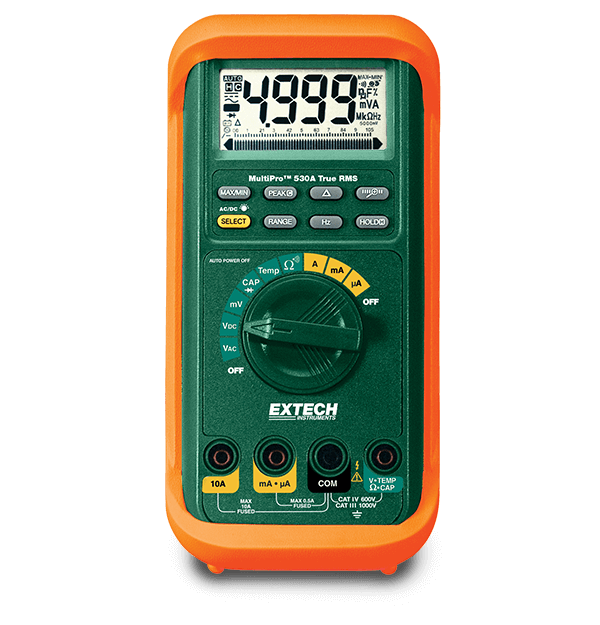

Extech MP530A
MultiPro® High-Performance MultiMeter
The Extech MP530A is a 5000 count, True RMS auto ranging Multimeter that measures AC/DC voltage and current, resistance, temperature, capacitance, and frequency with a 0.08% basic accuracy. Additional features include diode test, continuity check, auto power off, data hold, and low resistance auto lead zero, all on an easy to read, backlit display. Includes protective holster with built-in stand, test leads, Type K bead temperature probe, and 9 V battery.
Spécifications
| Spécifications générales | |
|---|---|
| Capacitance | 50nF ,500nF, 5µF, 50µF, 500µF, 9999µF |
| Capacité de résolution maximale | 0.01nF |
| Courant CA | 500µA, 5000µA, 50mA, 500mA, 5A, 10A |
| Courant CC | 500µA, 5000µA, 50mA, 500mA, 5A, 10A |
| Fréquence | 5Hz to 125kHz |
| Précision de base de la fréquence | ±(0.01% of reading + 2 digits) |
| Précision de base de la température (type N) | 1 °F/ °C |
| Précision de base de la tension CA | ±(0.8% of reading + 3 digits) |
| Précision de base de la tension CC | ±(0.08% of reading + 2 digits) |
| Précision de base du courant CA | ±(0.8% of reading + 4 digits) |
| Précision de base du courant CC | ±(0.2% of reading + 4 digits) |
| Résistance | 50Ω, 500Ω, 5kΩ, 50kΩ, 500kΩ, 5MΩ, 50MΩ |
| Résolution maximale de la fréquence | 0.001Hz |
| Résolution maximale de la résistance | 0.01Ω |
| Résolution maximale de la température (type K) | -58 to 1832 °F (-50 to 1000 °C ) |
| Résolution maximale de la tension CA | 0.01mV |
| Résolution maximale de la tension CC | 0.01mV |
| Résolution maximale du courant CA | 0.1µA |
| Résolution maximale du courant CC | 0.1µA |
| Température (Type N) | ±(0.3% of reading + 3 digits) |
| Tension CA | 50mV, 500mV, 5V, 50V, 500V, 1000V |
| Tension CC | 50mV, 500mV, 5V, 50V, 500V, 1000V |
| Valeurs efficaces (TRMS) | Yes |
| Détails supplémentaires | |
|---|---|
| Alimentation | 1 × 9V battery |
| Catégorie de sécurité | CATIV - 600V |
| Certifications | CE, UL |
| Dimensions | 7.32 × 3.42 × 1.39" (186 × 87 × 35.5mm) |
| Garantie | 2 years |
| Poids | 0.75lb (340g) |
