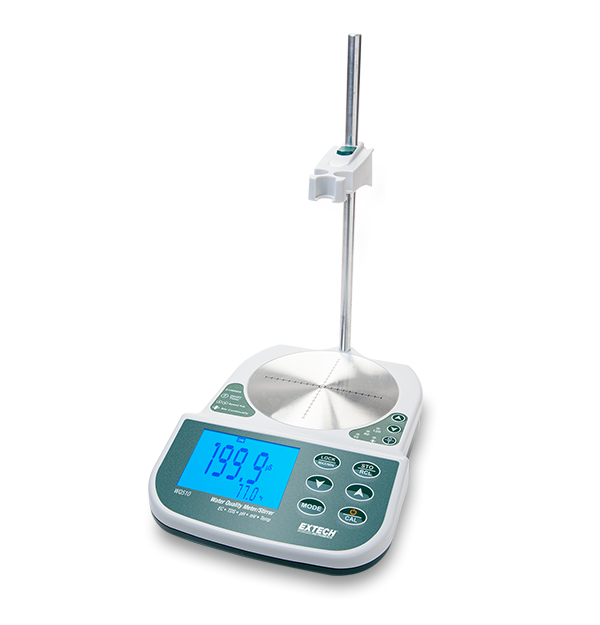

Extech WQ510
Benchtop Water Quality Meter/Stirrer
The Extech WQ510 is a 6 in 1 Benchtop Meter capable of measuring pH, ORP, conductivity, TDS, salinity, and temperature of liquids and semi-solids. The unit features a 30 min, 60 min, and 120 min timer or continuous stirring. It also has 2 or 3 point pH calibration, 1 point conductivity calibration, and automatic temperature compensation. This unit features a large backlit dual display, and the ability to store and recall 150 readings, as well as capture readings directly to a PC via the built-in USB interface. The WQ510 comes with pH glass electrode, conductivity cell, temperature probe, pH calibration solutions (4 pH and 7pH), conductivity calibration solutions (1413 µS and 12.88 mS), plastic burette, polishing paper, electrode clamp and rod, software and USB cable, AC adapter, stirrer, and user manual.
Spécifications
| Spécifications générales | |
|---|---|
| Conductivité | 0.0 to 100.0mS |
| Conductivité Résolution maximale | 0.1mS |
| pH | -2.00 to 16.00pH |
| Précision de base de la conductivité | ±2%FS |
| Précision de base de la salinité | ±2%FS |
| Précision de base de la température (contact) | ±1.8°F/1°C |
| Précision de base de l’ORP | ±2mV |
| Précision de base des TDS | ±2%FS |
| Précision de base du pH | ±0.02pH |
| rH | -1999 to + 1999mV |
| Résolution maximale de la salinité | 0.1ppt |
| Résolution maximale de la température (contact) | 0.1° |
| Résolution maximale de l’ORP | 0.1mV |
| Résolution maximale du pH | 0.1ppt |
| Résolution maximale du pH | 0.01pH |
| Salinité | 0.0 to 50.0ppt |
| TDS | 0.0 to 66.0ppt |
| Température (contact) | 32 to 212°F (0 to 100°C) for pH |
| Détails supplémentaires | |
|---|---|
| Alimentation | 100 to 240V AC adapter with US, EU, UK, and AU plugs |
| Certifications | CE |
| Dimensions | 4 × 5.7 × 1.3" (103 × 145 × 32mm) |
| Garantie | 2 years |
| Poids | 1.5lbs (700g) |
