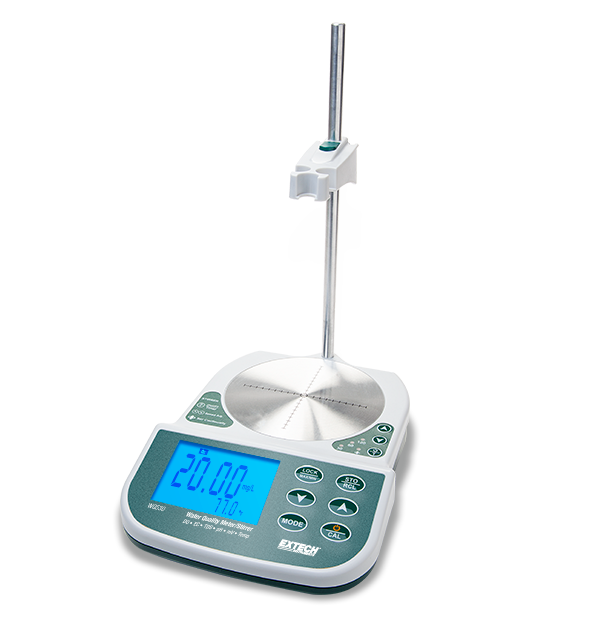

Extech WQ530
Benchtop Water Quality Meter/Stirrer
The Extech WQ530 is a 8 in 1 Benchtop Meter capable of measuring dissolved oxygen, concentration/saturation, pH, ORP, conductivity, TDS, salinity, and temperature of liquids and semi-solids. The unit features a 30 min, 60 min, and 120 min timer or continuous stirring. It also features two or three point pH calibration, one point conductivity calibration, automatic temperature compensation, adjustable conductivity to TDS ratio, and manual salinity and altitude compensation. The WQ530 features a large backlit dual display and the ability to store and recall 150 readings, as well as capture readings directly to a PC via the built-in USB interface. The WQ530 comes complete with pH glass electrode, conductivity cell, DO probe, temperature probe, four membrane caps and DO internal fill solution (30 mL), pH calibration solutions (4 pH and 7 pH), conductivity calibration solutions (1413 µS and 12.88 mS), plastic burette, polishing paper, electrode clamp and rod, software and USB cable, AC adapter and stirrer, and user manual.
Spécifications
| Spécifications générales | |
|---|---|
| Conductivité | 0.0 to 100.0mS |
| Conductivité Résolution maximale | 0.1mS |
| Oxygène dissous (concentration) | 0 to 20.00mg/L |
| Oxygène dissous (saturation) | 0 to 200.0% |
| pH | -2.00 to 16.00pH |
| Précision de base de la conductivité | ±2% full scale |
| Précision de base de la salinité | ±2%FS |
| Précision de base de la température (contact) | ±1.8°F/1°C |
| Précision de base de l’ORP | ±2mV |
| Précision de base de l’oxygène dissous (concentration) | ±2%FS |
| Précision de base de l’oxygène dissous (saturation) | ±2% full scale |
| Précision de base des TDS | ±2%FS |
| Précision de base du pH | ±0.02pH |
| rH | -1999 to + 1999mV |
| Résolution maximale de la salinité | 0.1ppt |
| Résolution maximale de la température (contact) | 0.1° |
| Résolution maximale de l’ORP | 0.1mV |
| Résolution maximale de l’oxygène dissous (concentration) | 0.01mg/L |
| Résolution maximale de l’oxygène dissous (saturation) | 0.10% |
| Résolution maximale du pH | 0.1ppt |
| Résolution maximale du pH | 0.01pH |
| Salinité | 0.0 to 50.0ppt |
| TDS | 0.0 to 66.0ppt |
| Température (contact) | 32 to 212°F (0 to 100°C) for pH |
| Détails supplémentaires | |
|---|---|
| Alimentation | 100 to 240V AC adapter with US, EU, UK, and AU plugs |
| Certifications | CE |
| Dimensions | 4 × 5.7 × 1.3" (103 × 145 × 32mm) |
| Garantie | 1.5lbs (700g) |
| Poids | 1.5lbs (700g) |
