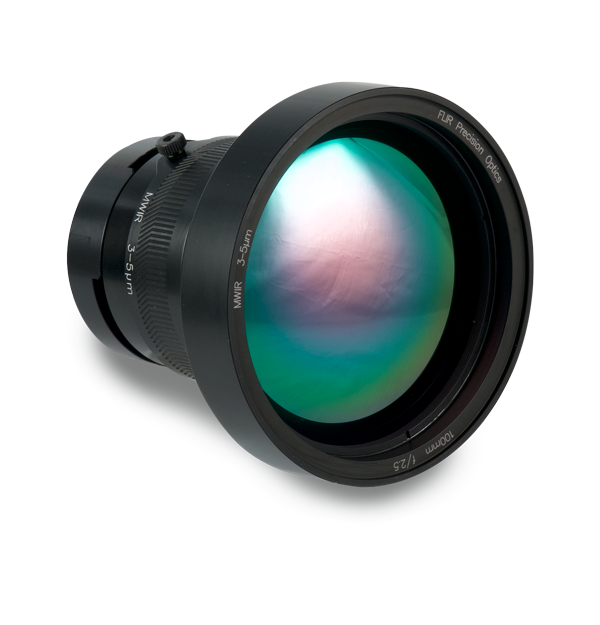

Obiettivo a baionetta manuale 3-5 μm, da 100 mm, FPO f/2.5 (4215502)

Obiettivo a baionetta manuale, 3-5 µm, da 100 mm, FPO f/2.5, per termocamere FLIR scientifiche e R&S, tra cui A67xx MWIR, A85xx MWIR, X68xx MWIR, X69xx MWIR e X85xx MWIR.

Specifiche

Dati ottici e immagine
Banda spettrale 3-5 µm
Diametro 105 mm (4.14 in)
Distanza iperfocale 174 m (a 4,2 μm)
Distorsione <0,5%
Lunghezza 74 mm (2,90 in)
Lunghezza focale 100 mm
Messa a fuoco Manuale
Messa a fuoco Da 3 m a infinito
Numero_F f/2,5
Comunicazione e Memorizzazione dati
Interfaccia Baionetta per obiettivo manuale FPO a 4 schede
Ambientali e Certificazioni
Range di temperature di esercizio Da -20°C a 50°C (da -4°F a 122°F)
Range di temperature di stoccaggio Da -20°C a 60°C (da -4°F a 140°F)
Generali
Peso 0,63 kg (1,4 lbs)
Trasmissione media 95,27%

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
