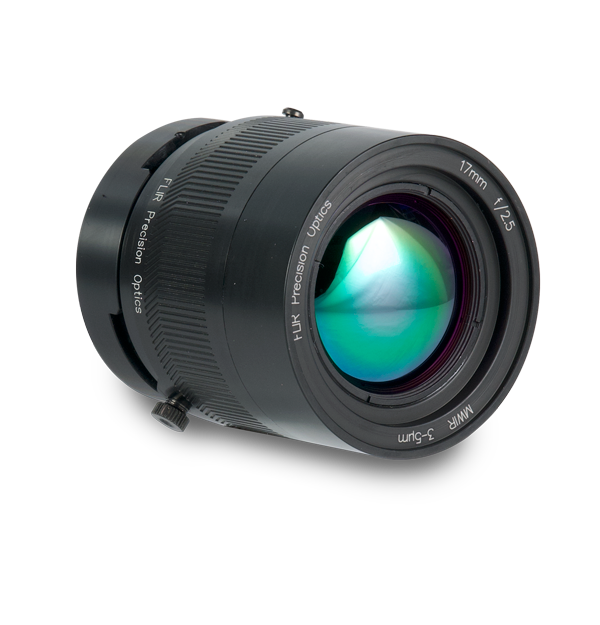

Obiettivo a baionetta manuale MWIR da 17 mm, 3-5 μm, FPO f/2.5 (4215423)

Obiettivo a baionetta manuale, da 17 mm, 3-5 µm, FPO f/2.5, per termocamere FLIR scientifiche e R&S, tra cui A67xx MWIR, A85xx MWIR, X68xx MWIR, X69xx MWIR e X85xx MWIR.

Specifiche

Dati ottici e immagine
Banda spettrale 3-5 µm
Diametro 68 mm (2.69 in)
Distanza iperfocale 5 m (a 4,2 μm)
Distorsione <3,5%
Lunghezza 68 mm (2,69 in)
Lunghezza focale 17 mm
Messa a fuoco Manuale
Messa a fuoco Da 0,06 m a infinito
Numero_F f/2,5
Comunicazione e Memorizzazione dati
Interfaccia Baionetta per obiettivo manuale FPO a 4 schede
Ambientali e Certificazioni
Range di temperature di esercizio Da -20°C a 50°C (da -4°F a 122°F)
Range di temperature di stoccaggio Da -20°C a 60°C (da -4°F a 140°F)
Generali
Peso 0,44 kg (0,96 lbs)
Trasmissione media 95,12%
