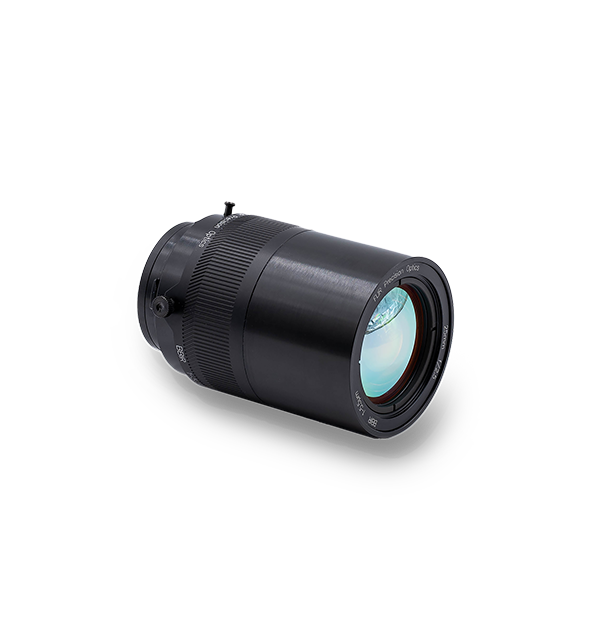

Obiettivo manuale a baionetta FPO a banda larga da 25 mm, 1-5 μm, f/2,5 FPO (4218538)

Obiettivo a baionetta manuale FPO a banda larga da 25 mm, 1-5 μm, f/2,5 FPO per termocamere FLIR R&D/scientifiche, tra cui A67xx MWIR, A85xx MWIR, X68xx MWIR, X69xx MWIR e X85xx MWIR.

Specifiche

Dati ottici e immagine
Banda spettrale 1 - 5,5 µm
Diametro 68 mm (2,69 in)
Distanza iperfocale 11 m/16 m (a 4,2 µm/3 µm)
Distorsione <3%
Lunghezza 90 mm - 94 mm (3,54 in - 3,69 in)
Lunghezza focale 25 mm
Messa a fuoco Da 0,2 m a infinito
Numero_F 2,5
Ambientali e Certificazioni
Range di temperature di esercizio Da -20°C a 50°C (da -4°F a 122°F)
Range di temperature di stoccaggio Da -20°C a 60°C (da -4°F a 140°F)
Generali
Peso 0,61 kg (1,35 libbre)
Trasmissione media 82,91%

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
