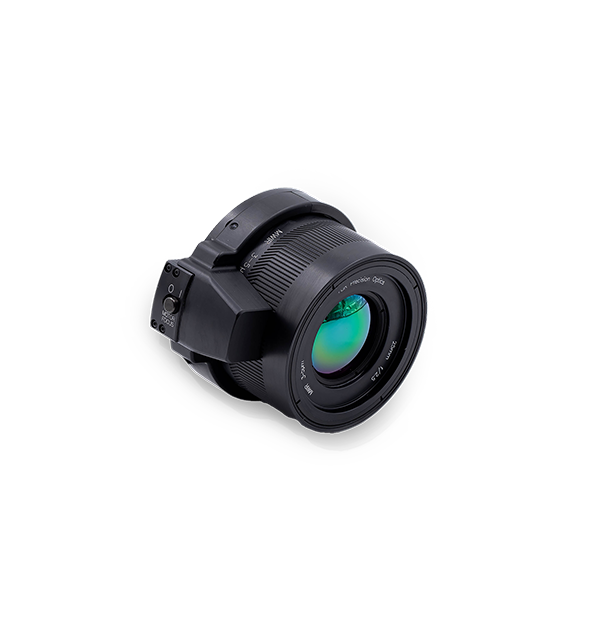

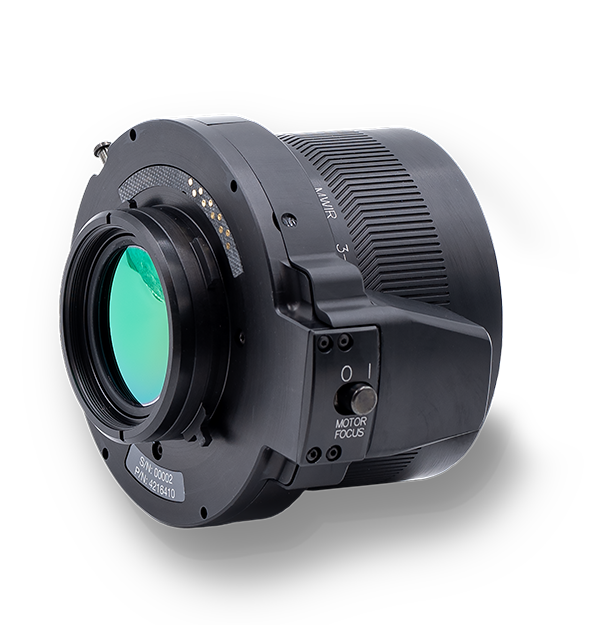

25 mm, 3.0-5.0 µm, f/2.5 MWIR Motorized FPO Bayonet Lens (4216410)
25 mm, 3.0-5.0 µm, f/2.5 MWIR Motorized FPO Bayonet Lens for FLIR R&D/Science cameras, including A67xx MWIR, A85xx MWIR, X69xx MWIR, and X85xx MWIR.
Specifiche
| Dati ottici e immagine | |
|---|---|
| Banda spettrale | 3 - 5 µm |
| Diametro | 90 mm/3.54 in (62 mm/2.44 in CL to Toggle) |
| Distanza iperfocale | 11 m (at 4.2 µm) |
| Distorsione | <3% |
| Lunghezza | 62.5 mm (2.46 in) |
| Lunghezza focale | 25 mm |
| Messa a fuoco | 0.2 m to infinity |
| Numero_F | 2.5 |
| Ambientali e Certificazioni | |
|---|---|
| Range di temperature di esercizio | -20°C to 50°C (-4° to 122°F) |
| Range di temperature di stoccaggio | -20°C to 60°C (-4°F to 140°F) |
| Generali | |
|---|---|
| Peso | 0.60 kg (1.33 lbs) |
| Trasmissione media | 95.54% |
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
