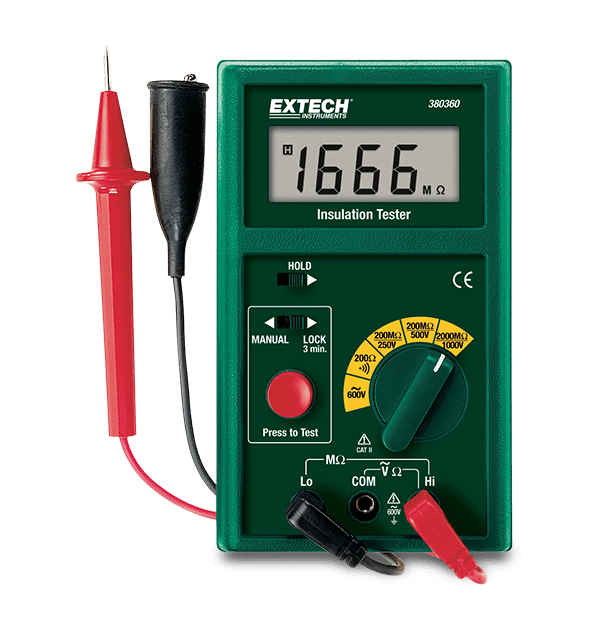

Extech 380360
Digital Megohmmeter
The Extech 380360 is a 1000 V Megohmmeter with an automatic 3 minute test. It has three test voltages of 250 V, 500 V and 1000 V, plus insulation resistance up to 2000 MΩ. Automatic discharge when the safety "Press to Test" button is released. Complete with 6 AA batteries, heavy duty 0.8 m (2.5 ft) test leads, alligator clip, large probe, and case with neck strap.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base bassa resistenza | 1% of reading |
| Accuratezza di base resistenza di isolamento | <1000MΩ (3% of reading + 5 digits), >1000MΩ (5% of reading + 5 digits) |
| Accuratezza di base tensione CA | 0.8% of reading + 3 digits |
| Bassa resistenza | 200Ω |
| Continuità | <100Ω |
| Corrente di cortocircuito in uscita | 1.5 mA 0.3-0.5 mA |
| Protezione da sovraccarico | 2200V (< 1 min) |
| Resistenza | 20/200Ω |
| Resistenza isolamento | 200M, 2000MΩ |
| Tensione AC | 600V |
| Tensione test di isolamento | 250V, 500V, 1000V |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 6 × AA (1.5V) batteries |
| Categoria di sicurezza | CAT II-600V |
| Certificazioni | CE |
| Dimensioni | 3.8 × 6.3 × 2.3" (97 × 160 × 58mm) |
| Display | Segment LCD |
| Garanzia | 2 years |
| Peso | 13oz (369g) |
Resources & Support
User Manual
Manuale utente Extech 380360
User Manual
Extech 380360 User Manual GB
Datasheet
Extech 380360 Datasheet
