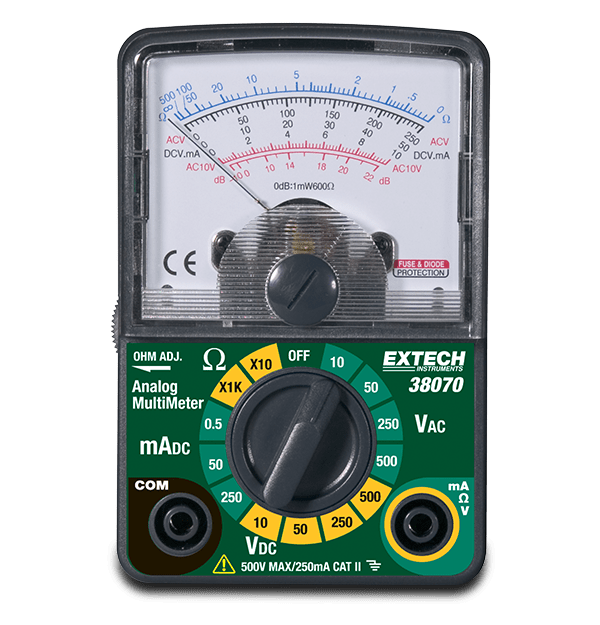

Extech 38070
Compact Analog MultiMeter
Extech’s 38070 Compact Analog MultiMeter offers the testing advantages of an analog meter with a pocket-friendly size and detachable leads. This compact and affordable multimeter is equipped with measurement capabilities that are ideal for the hobbyist, handyman, electronics tinkerer, or DIYer. Use this meter to perform basic troubleshooting on anything connected to an outlet. Analog meters like this one are also useful for illustrating adjustments made to a circuit between relative high and low settings. Includes test leads, one AA battery, and a user manual.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base corrente CC | ±4% full scale |
| Accuratezza di base tensione CA | ±4% full scale |
| Accuratezza di base tensione CC | ±4% full scale |
| Corrente DC | 0.5mA, 50mA, 250mA |
| Decibel | -10 to 56dB (0dB, 1mW, 600Ω) |
| Resistenza | 10kΩ, 1MΩ |
| Tensione AC | 10V, 50V, 250V, 500V |
| Tensione DC | 10V, 50V, 250V, 500V |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 1 × AA (1.5V) battery |
| Categoria di sicurezza | CAT II-500V |
| Certificazioni | CE, UL |
| Dimensioni | 3.82 × 3.34 × 1.3" (97 × 65 × 33mm) |
| Display | Analog |
| Garanzia | 2 years |
| Peso | 3.88oz (110g) |
Resources & Support
User Manual
Extech 38070 User Manual
Datasheet
Extech 38070 Datasheet
