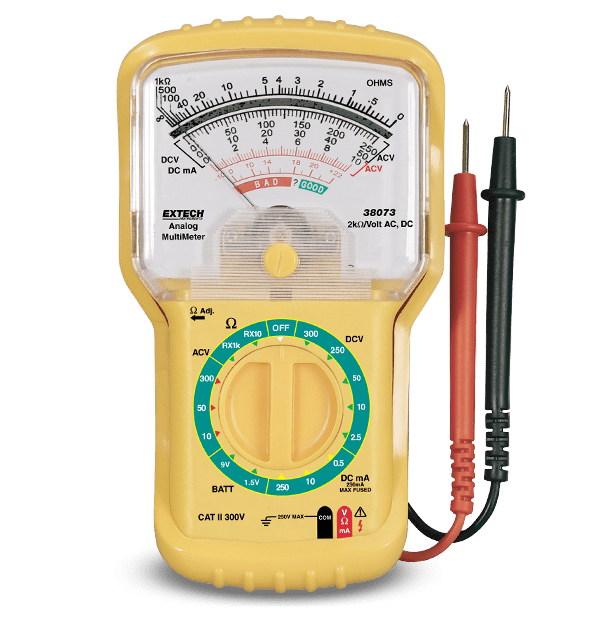

Extech 38073
Mini Analog MultiMeter
Extech’s 38073 Mini Analog MultiMeter offers the testing advantages of an analog meter with a pocket-friendly size. This compact multimeter is equipped with measurement capabilities that are perfect for a electrical hobbyist, electronics tinkerer, home DIYer, and shadetree mechanic. Useful for illustrating adjustments made to a circuit between relative high and low settings, this meter can be used to perform basic troubleshooting on anything connected to an outlet. Complete with protective holster, test leads, and one 1.5 V AA battery.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base corrente CC | ±5% full scale |
| Accuratezza di base tensione CA | ±5% full scale |
| Accuratezza di base tensione CC | ±5% full scale |
| Corrente DC | 0.5mA, 10mA, 250mA |
| Decibel | -10 to 56dB (0dB, 1mW, 600Ω) |
| Resistenza | 10kΩ, 1MΩ |
| Tensione AC | 10V, 50V, 300V |
| Tensione DC | 2.5V, 10V, 50V, 250V, 300V |
| Test batteria | 1.5V and 9V |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 1 × AA (1.5V) battery |
| Categoria di sicurezza | CAT II-300V |
| Certificazioni | CE |
| Dimensioni | 3.5 × 6.1 × 1.9" (88 × 155 × 49mm) with holster |
| Display | Analog |
| Garanzia | 2 years |
| Peso | 8.2oz (288g) with holster and test leads |
Resources & Support
User Manual
Extech 38073 User Manual
Certification
Extech 38073 Declaration of Conformity
Datasheet
Extech 38073 Datasheet
