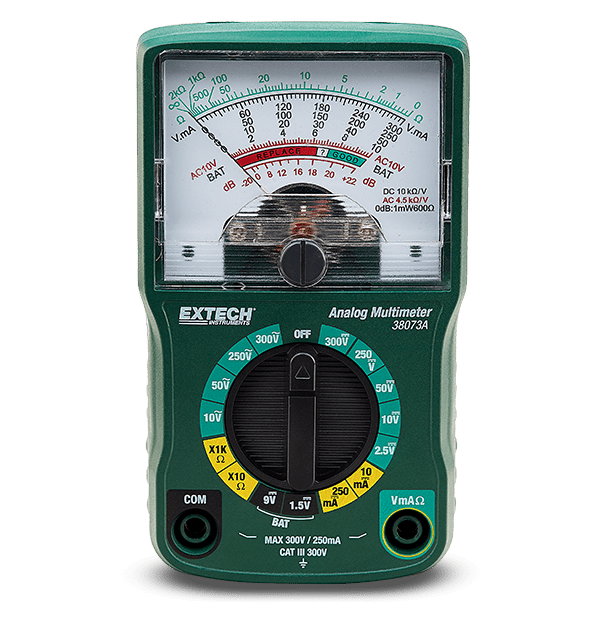

Extech 38073A
Mini Analog MultiMeter
Extech’s 38073A Mini Analog MultiMeter offers the testing advantages of an analog meter with a pocket-friendly size. This compact multimeter is equipped with measurement capabilities that are perfect for a electrical hobbyist, electronics tinkerer, home DIYer, and shadetree mechanic. It offers 6 functions and includes test leads plus an easy to read, color coded analog display. Useful for illustrating adjustments made to a circuit between relative high and low settings, this meter can be used to perform basic troubleshooting on anything connected to an outlet. Complete with test leads and a 1.5 V AA battery.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base corrente CC | ±4% full scale |
| Accuratezza di base tensione CA | ±5% full scale |
| Accuratezza di base tensione CC | ±4% full scale |
| Corrente DC | 10mA, 250mA |
| Decibel | -20 to 22dB (0dB: 1mW, 600Ω) |
| Resistenza | 10Ω, 1kΩ |
| Tensione AC | 10V, 50V, 250V, 300V |
| Tensione DC | 2.5V, 10V, 50V, 250V, 300V |
| Test batteria | 9V and 1.5V |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 1 × 9V battery |
| Categoria di sicurezza | CAT III-300V |
| Certificazioni | CE,ETL |
| Dimensioni | 4.6 × 2.7 × 1.3" (116 × 68 × 34mm) |
| Garanzia | 2 years |
| Peso | 4.2oz (120g) |
Resources & Support
Certification
Extech 38073A Declaration of Conformity
User Manual
Extech 38073A User Manual GB
Datasheet
Extech 38073A Datasheet
