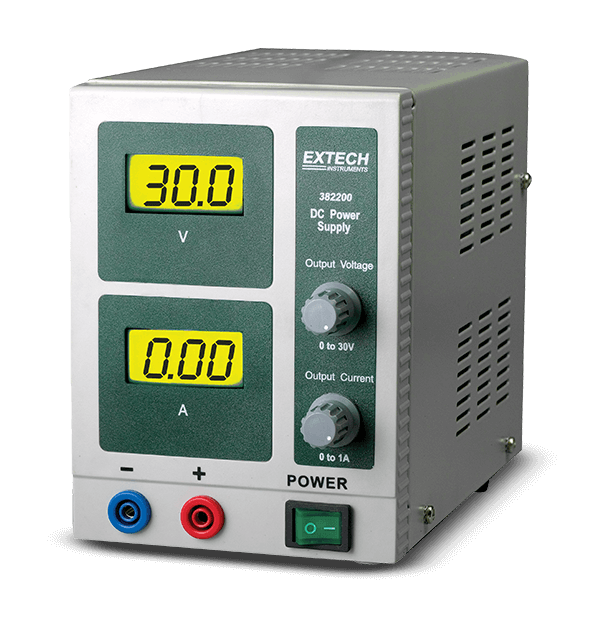

Extech 382200
Alimentatore CC a uscita singola 30 V/1 A
Alimentatore CC digitale a tensione/corrente costante con doppio LCD
Specifiche
| Specifiche generali | |
|---|---|
| Line Current Regulation | <0,2% + 3 mA |
| Line Voltage Regulation | <0,01% + 3 mV |
| Load Current Regulation | <0,2% + 3 mA |
| Load Voltage Regulation | <0,01% + 2 mV |
| Output Current | Da 0 a 1,00 A CC |
| Output Current Basic Accuracy | ±2% della lettura |
| Output Voltage | 30,0 VCC |
| Output Voltage Basic Accuracy | ±1,5% della lettura |
| Ripple and Noise | <0,5 mV/<3 mA |
| Ulteriori dettagli | |
|---|---|
| Dimensions | 240 × 108 × 154 mm (9,4 × 4,25 × 6”) |
| Power | 115/230 V; 50/60 Hz |
| Warranty | Due anni |
| Weight | 2 kg (4,4 lbs) |
Resources & Support
Certification
Extech 382200 Declaration of Conformity
User Manual
Extech 382200 382202 User Manual
Datasheet
Extech 382200-382202 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
