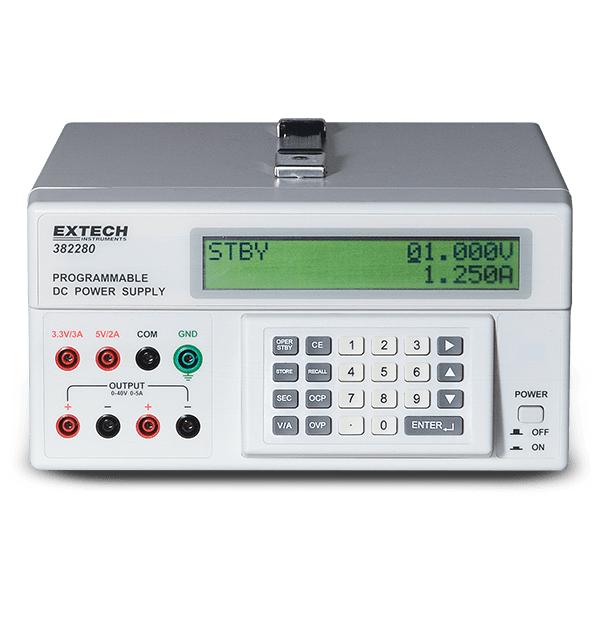

Extech 382280
Precision with Programmable 200 Watt Output DC Power Supply
The Extech 382280 is a Programmable 200 Watt DC Power Supply that has an adjustable 40 V/5 A output, plus two fixed outputs (5 V/2 A and 3.3 V/3 A) and memory for 200 setups. It features high stability with low ripple and noise, 0 to 60 second programmable overload delay timer, selectable constant current/constant voltage, and a bi-directional PC interface that allows setup and read back using virtually any PC communications program.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base corrente in uscita | 0.2% ± 9mA |
| Accuratezza di base tensione in uscita | 0.05% ± 9mV |
| Corrente in uscita | 0 to 5A |
| Ripple e rumore | Voltage (mVrms): 3mV Current (mArms): 3mA |
| Risoluzione max corrente in uscita | 1mA |
| Risoluzione max tensione in uscita | 1mV |
| Tensione uscita | 0 to 40V |
| Uscite fisse | 5V/2A, 3.3V/3A |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 110 or 220VAC, 50/60Hz |
| Certificazioni | CE |
| Dimensioni | 12.2 × 9.9 × 5.3" (310 × 250 × 135mm) |
| Garanzia | 2 years |
| Peso | 8.4lbs (3.8kg) |
Resources & Support
User Manual
Manuale utente Extech 382280
User Manual
Extech 382280 User Manual GB
Datasheet
Extech 382280 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
