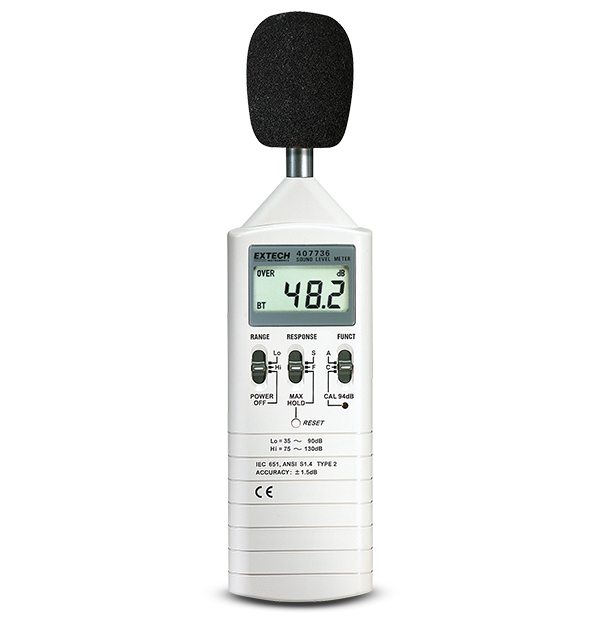

Extech 407736
Dual Range Sound Level Meter
The Extech 407736 Dual Range Sound Level Meter measures from 35 dB to 130 dB ±1.5 dB, and it meets both ANSI and IEC Type 2 standards. It features a fast and slow response time, A/C weighting, max hold function, and an analog AC/DC output for connection to an analyzer or recorder. Comes complete with microphone wind screen, 9 V battery, and carrying case.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base gamma sonora (dB) | ±1.5dB (Type 2) |
| Gamma sonora (dB) | Low: 35 to 90dB; High: 75 to 130dB |
| Microfono | Condenser, 0.5” (12.7mm) |
| Ponderazione | A,C |
| Risoluzione max gamma sonora (dB) | 0.1dB |
| Tempo di risposta | Fast/Slow |
| Uscita analogica | AC/DC |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 1 × 9V battery |
| Certificazioni | CE |
| Dimensioni | 9.5 × 2.7 × 1" (241 × 69 × 25mm) |
| Garanzia | 2 years |
| Peso | 7.6oz (215g) |
Resources & Support
User Manual
Extech 407736 User Manual GB
Datasheet
Extech 407735 407736 Datasheet
Certification
Extech 407736 Declaration of Conformity
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
