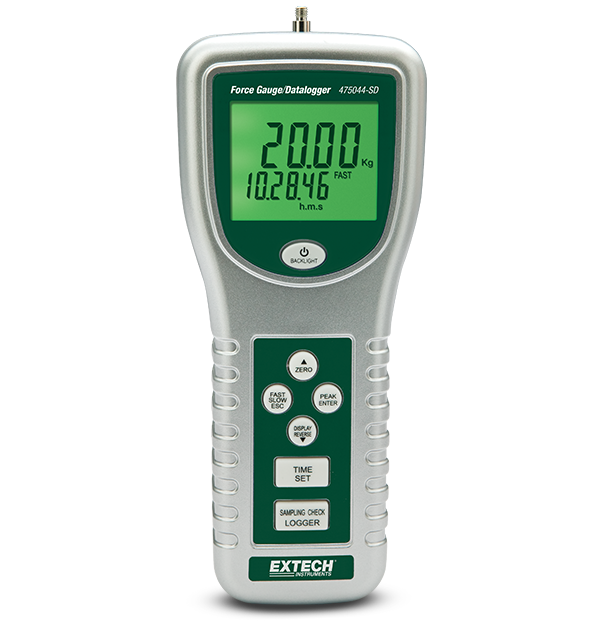

Extech 475044-SD
High Capacity Force Gauge/Datalogger
The Extech 475044-SD Digital Force Gauge/Datalogger dates, time stamps and stores up to 2 M push/pull readings on an SD card in Excel format for easy transfer to a PC. It features a 5 digit LCD display with peak hold, an exclusive load cell measurement transducer, and an overrange, low battery, and advanced function indicator. 20 kg/44 lbs/196 Newtons measurement capacity. 0.5% basic accuracy with auto power off. Complete with SD card, tension rod, carrying case and 4 adapters (flathead, cone, chisel and hook for tension), and 6 AA batteries.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base forza | ±(0.5%) |
| Capacità sovraccarico | 30kg |
| Forza | 44lbs, 20kg, 196 Newtons |
| Memoria | SD Card |
| Rilevazione a fondo scala | 2.00mm |
| Risoluzione max forza | 0.01lbs, 0.01kg, 0.05 Newtons |
| Tipo trasduttore | Load cell |
| Velocità di aggiornamento | Fast mode 0.2secs; Slow mode 0.6secs |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 6 × AA batteries |
| Certificazioni | CE |
| Dimensioni | 8.5 × 3.5 × 1.8" (215 × 90 × 45mm) |
| Garanzia | 2 years |
| Peso | 1.4 lbs (650g) |
Risorse e supporto
User Manual
Manuale utente Extech 475040-SD 475044-SD
Certification
Extech 475044-SD Declaration of Conformity
User Manual
Extech 475040-SD475044-SD User Manual GB
Datasheet
Extech 475040-SD-475044-SD Datasheet
