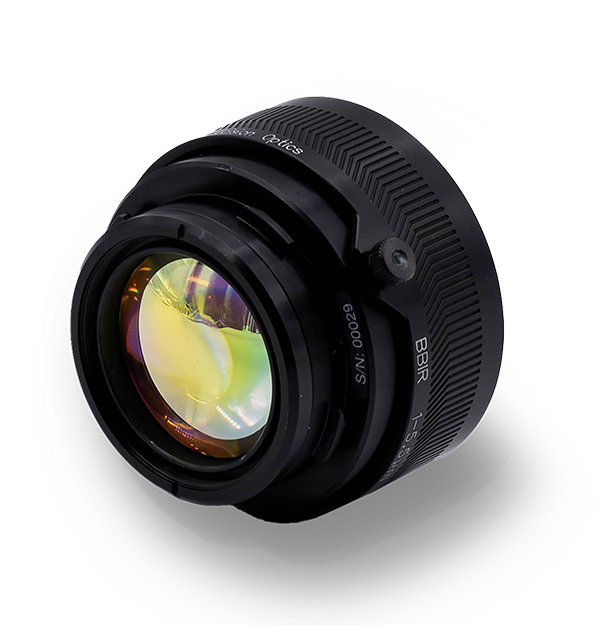

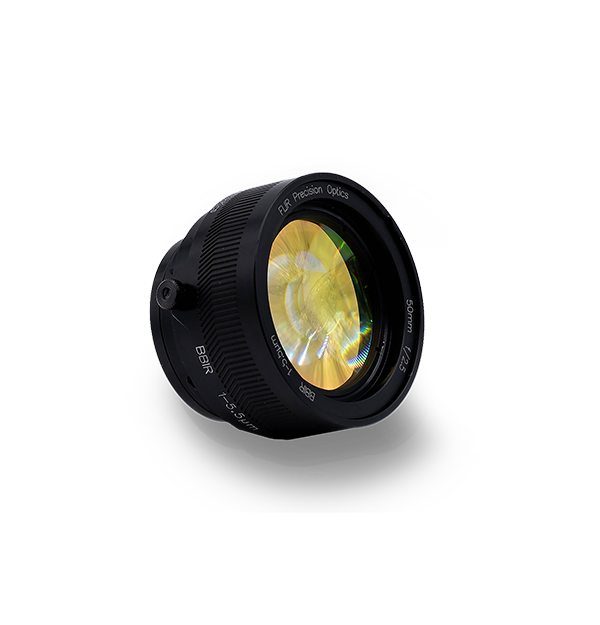

50 mm, 1-5 µm, f/2.5 Broadband FPO Manual Bayonet Lens (4218539)

50 mm, 1-5 µm, f/2.5 Broadband FPO Manual Bayonet lens for FLIR R&D/Science cameras, including A67xx MWIR, A85xx MWIR, X68xx MWIR, X69xx MWIR, and X85xx MWIR.

Specifiche

Dati ottici e immagine
Banda spettrale 1 - 5 µm
Diametro 68 mm (2.69 in)
Distanza iperfocale 46 m/64 m (at 4.2 µm/3 µm)
Distorsione <1%
Lunghezza 40.6 mm (1.60 in)
Lunghezza focale 50 mm
Messa a fuoco 0.5 m to infinity
Numero_F 2.5
Ambientali e Certificazioni
Range di temperature di esercizio -20°C to 50°C (-4° to 122°F)
Range di temperature di stoccaggio -20°C to 60°C (-4°F to 140°F)
Generali
Peso 0.30 kg (0.66 lbs)
Trasmissione media 85.54%

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
