A40, A50, and A70 Research & Development Kits
Fixed-Mount Thermal Camera
Product Variations

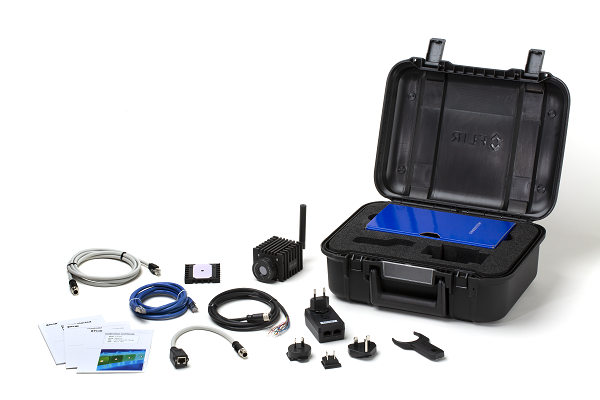

Flir A40, A50, and A70 Research & Development Kits are affordable, ready-to-use solutions for thermal imaging analysis in proof-of-concept electronics testing and R&D applications. Providing thousands of temperature measurement points, users can eliminate thermal guesswork, reduce product development time, and increase product efficiency and reliability. These kits are the right choice for engineers and technicians who need to fully understand the thermal profiles of their systems or require defensible thermal data to support critical decisions. Users can quickly view, record, analyze and share thermal data with the included Flir Research Studio software or take advantage of industry-standard connections to integrate into custom software applications when needed.
Affordable, ready-to-use solution for thermal imaging analysis in proof-of-concept electronics testing and R&D.
Quickly reveal thermal characteristics to eliminate guesswork and reduce product development time with up to 640 × 480 (307,200 pixels) thermal resolution, ±2°C accuracy, and a built-in visible camera with MSX®.
Start testing sooner with limited ramp-up time and simple non-proprietary industry standard interfaces; perform qualitative and quantitative thermal analysis with the included Flir Research Studio software (1-year license included).

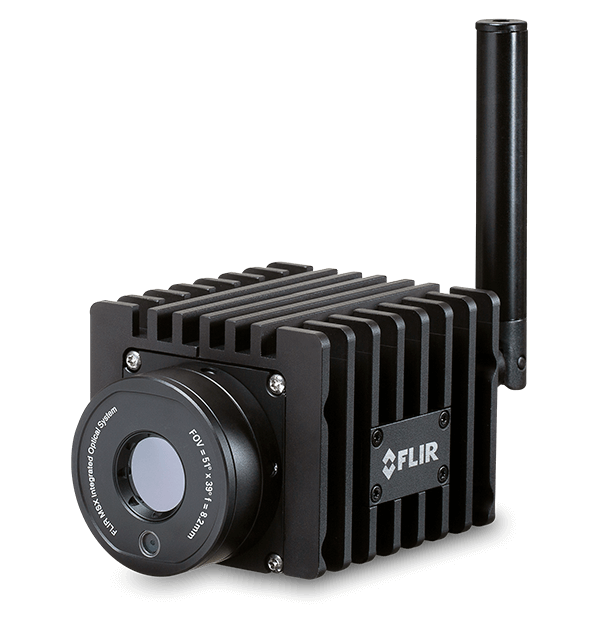

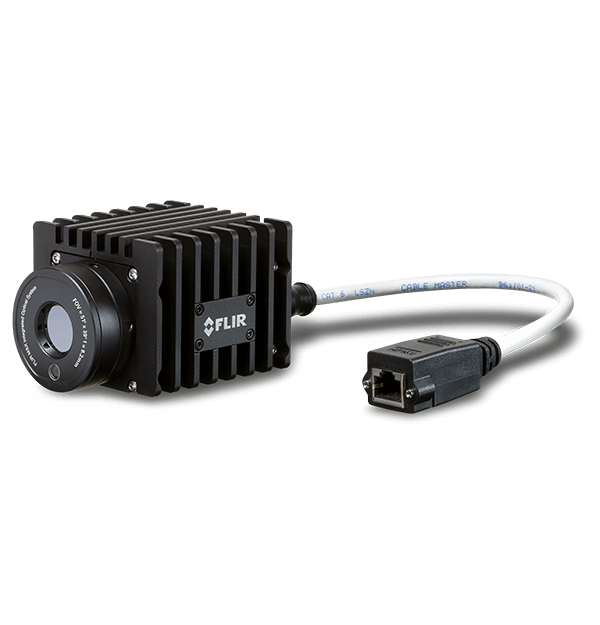

Easily install the IP66 rated camera with M-style connectors in any location; transition from design and testing to process control using GigE Vision and GenICam protocols.
Specifiche
| Highlighted | |
|---|---|
| IR Resolution | A40 R&D Kit 29°, A40 R&D Kit 51°, A40 R&D Kit 95°: 320 × 240 A50 R&D Kit 29°, A50 R&D Kit 51°, A50 R&D Kit 95°: 464 × 348 A70 R&D Kit 29°, A70 R&D Kit 51°, A70 R&D Kit 95°: 640 × 480 |
| Detector Pitch | 17 µm |
| Spectral Range | 7.5–14.0 µm |
| Detector Type | Uncooled microbolometer |
| Dynamic Range | 16-bit |
| Thermal Sensitivity/NETD | <50 mK |
| Frame Rate | 30 Hz |
| Standard Temperature Range | A40 R&D Kit 29°, A40 R&D Kit 51°, A40 R&D Kit 95°: -20°C to 175°C (-4°F to 347°F); 175°C to 1000°C (347°F to 1832°F) A50 R&D Kit 29°, A50 R&D Kit 51°, A50 R&D Kit 95°: -20°C to 175°C (-4°F to 347°F); 175°C to 1000°C (347°F to 1832°F) A70 R&D Kit 29°, A70 R&D Kit 51°, A70 R&D Kit 95°: -20°C to 175°C (-4°F to 347°F); -20°C to 250°C (-4°F to 482°F); 175°C to 1000°C (347°F to 1832°F) |
| Focus | Adjustable with included focus tool |
| Imaging & Optical | |
|---|---|
| Available Lenses | Fixed lens only |
| Detector Pitch | 17 µm |
| Detector Type | Uncooled microbolometer |
| Digital Data Streaming to PC | Via workstation running included Research Studio Software |
| Dynamic Range | 16-bit |
| Field of view (FOV) | A40 R&D Kit 29°, A50 R&D Kit 29°, A70 R&D Kit 29°: 29° × 22° A40 R&D Kit 51°, A50 R&D Kit 51°, A70 R&D Kit 51°: 51° × 39° A40 R&D Kit 95°, A50 R&D Kit 95°, A70 R&D Kit 95°: 95° × 74° |
| Focus | Adjustable with included focus tool |
| Frame Rate | 30 Hz |
| Image Modes | Thermal, visual, MSX®, FSX® |
| IR Resolution | A40 R&D Kit 29°, A40 R&D Kit 51°, A40 R&D Kit 95°: 320 × 240 A50 R&D Kit 29°, A50 R&D Kit 51°, A50 R&D Kit 95°: 464 × 348 A70 R&D Kit 29°, A70 R&D Kit 51°, A70 R&D Kit 95°: 640 × 480 |
| Lens | A40 R&D Kit 29°, A50 R&D Kit 29°, A70 R&D Kit 29°: 29° fixed A40 R&D Kit 51°, A50 R&D Kit 51°, A70 R&D Kit 51°: 51° fixed A40 R&D Kit 95°, A50 R&D Kit 95°, A70 R&D Kit 95°: 95° fixed |
| Lens Identification | None |
| Macro Mode | No |
| Minimum Focus Distance | A40 R&D Kit 29°: 0.25 m (0.82 ft)
A40 R&D Kit 51°: 0.2 m (0.66 ft)
A40 R&D Kit 95°: 0.1 m (0.33 ft)
A50 R&D Kit 29°: 0.25 m (0.82 ft) A50 R&D Kit 51°: 0.2 m (0.66 ft) A50 R&D Kit 95°: 0.1 m (0.33 ft) A70 R&D Kit 29°: 0.25 m (0.82 ft) A70 R&D Kit 51°: 0.2 m (0.66 ft) A70 R&D Kit 95°: 0.1 m (0.33 ft) |
| Spectral Range | 7.5–14.0 µm |
| Thermal Sensitivity/NETD | <50 mK |
| Visible Camera | Included, 1280 × 960 resolution |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
| Standard Temperature Range | A40 R&D Kit 29°, A40 R&D Kit 51°, A40 R&D Kit 95°: -20°C to 175°C (-4°F to 347°F); 175°C to 1000°C (347°F to 1832°F) A50 R&D Kit 29°, A50 R&D Kit 51°, A50 R&D Kit 95°: -20°C to 175°C (-4°F to 347°F); 175°C to 1000°C (347°F to 1832°F) A70 R&D Kit 29°, A70 R&D Kit 51°, A70 R&D Kit 95°: -20°C to 175°C (-4°F to 347°F); -20°C to 250°C (-4°F to 482°F); 175°C to 1000°C (347°F to 1832°F) |
| Communication & Data Storage | |
|---|---|
| Command and Control | Gigabit Ethernet (RTSP, GigE Vision), Wi-Fi |
| Digital I/O connector type | M12 Male 12-pin A-coded (shared with external power) |
| Digital Inputs | 2× opto-isolated, Vin (low) = 0 to 1.5 V, Vin (high) = 3 to 25 V |
| Digital Outputs | 3× opto-isolated, 0 to 48 V DC, max. 350 mA (derated to 200 mA at 60°C); solid-state opto relay, 1× dedicated as fault output (NC) |
| Ethernet Communication | GigE Vision ver. 1.2, Client API GenICam compliant, TCP/IP socket-based (FLIR proprietary) |
| Ethernet Connector Type | M12 8-pin X-coded, female |
| Ethernet Image Streaming | Yes |
| Ethernet Power | Power over Ethernet, PoE IEEE 802.3af class 3 |
| WiFi | Yes, Female RP-SMA connector; Peer to peer (ad hoc) or Infrastructure (network) |
| General | |
|---|---|
| Size [L x W x H ] w Lens | 107 × 67 × 57 mm, (4,21 × 2.63 × 2,25 in.) without bottom cooling plate |
| Power | |
|---|---|
| External Voltage | 24/48 V DC, 8 W max |
| Power | Power over Ethernet or External |
| Power Cable Configuration | Power over Ethernet or External |
| Power Connection | M12 Male 12-pin A-coded (shared with Digital I/O) |
| Environmental & Certifications | |
|---|---|
| Encapsulation | IEC 60529 and IP66 |
| Mounting | 1/4-20 UNC depth 7 mm + Ø5 depth 2.7 mm |
| Operating Temperature | -20°C to 50°C (-4°F to 113°F), with included cooling plate, Maximum camera case temperature: 65°C (149°F) |
| Shock | IEC 60068-2-27, 25 g |
| Storage Temperature Range | IEC 68-2-1 and IEC 68-2-2, -40°C to 70°C (-40°F to 158°F) for 16 hours |
| Vibration | IEC 60068-2-6, 0.15 mm at 10 Hz to 58 Hz and 2 g at 58 Hz to 500 Hz, Sinusoidal IEC 61373 Cat 1 (Railway) |
