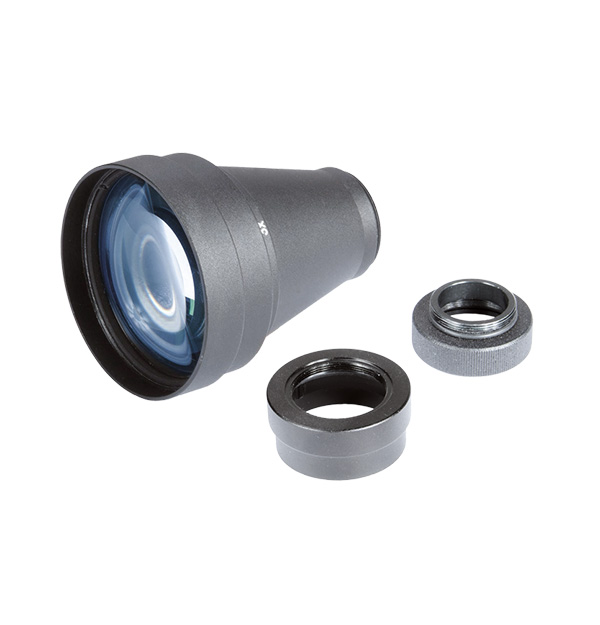

3x Afocal Lens #22 with Adapter #24/#25 (PVS-7, PVS-14)
Afocal lenses add magnified, long-range performance to standard night vision devices. Quickly installed onto the front of an objective lens, the 3x Afocal Magnifier Lens converts night vision monoculars and goggles into long-range optics. Standard military devices, such as the PVS-7 or PVS-14, require Afocal Adapters #24 or #25 for a secure connection between afocal and objective lenses. The adapters are not compatible with external sacrificial windows.
Specifiche
| Sensori e Ottiche | |
|---|---|
| Campo visivo [angolo] | ≥11°30' |
| Ingrandimento | 3x |
| Risoluzione | ≤4.1" |
| Ambientali e Certificazioni | |
|---|---|
| Impermeabile | 1m / 30 min |
| Temperatura di stoccaggio | -57°C to +65°C (-65°F to +149°F) |
| Panoramica sistema | |
|---|---|
| Trasmissione luce [da 400 a 900 nm] | ≥ 90% |
| Fisiche | |
|---|---|
| Dimensioni [senza copriobiettivi] | Ø61.2 х 73.5mm |
| Peso | 180 g (0.39 lbs) |
