Extech AUT20
20A Current Tester

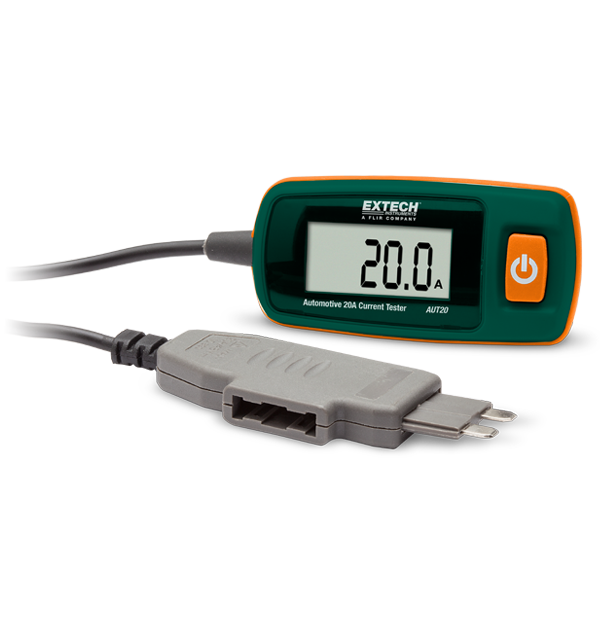

The Extech AUT20 is an automotive 20 A Current Tester and ATC fuse. The ATC-blade connectors plug directly into the fuse block for ease of use. It has a measuring range of 20 A/48 VDC (10 seconds max), with 10 mA resolution. Includes one 12 V A23G battery.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base corrente CC | ±(2.0% of reading + 2 digits) |
| Corrente DC | 0 to 20A DC |
| Distanza di rilevazione | <0.2" |
| Lunghezza cavo | 71cm (2.3 ft.) |
| Risoluzione max corrente CC | 10mA |
| Tensione DC | 48V DC |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 1 × A23G (12V) battery |
| Certificazioni | CE |
| Dimensioni | 159 × 25mm (6.25 × 1") |
| Garanzia | 2 years |
| Peso | 42g (1.5 oz) |
Resources & Support
User Manual
Manuale utente Extech AUT20 AUT20M
Certification
Extech AUT20 Declaration of Conformity
Datasheet
Extech AUTxx Datasheet
User Manual
Extech AUT20 AUT20M User Manual GB
