Discontinued

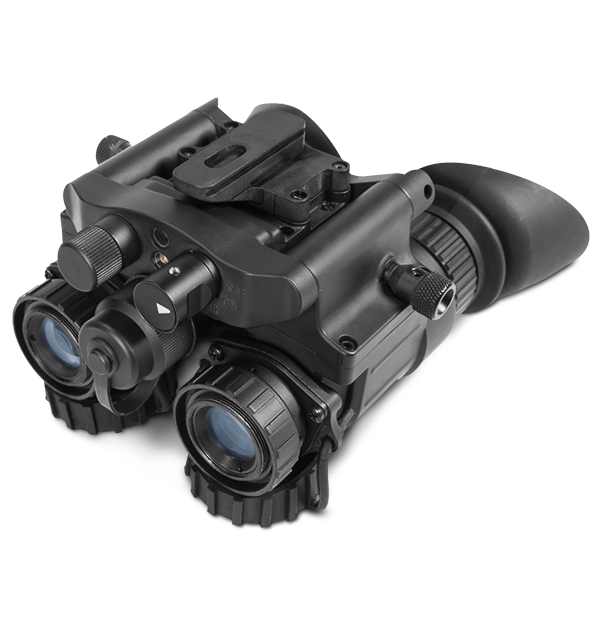

FLIR BNVD-51
51° Night Vision Goggles
The wide-angle FLIR BNVD-51 dual-channel night vision system creates an undisputed tactical advantage. Head and helmet mounting options provide hands-free full-field night vision while multi-coated lenses and composite housing stand up to wear and tear. One AA or CR123A battery can power the BNVD-40 up to 20 hours.
Wide-Angle Night Vision for Superior Awareness
51-degree lens offers a 28% field of view increase over similar 40-degree models.
Head or helmet mounting allows hands-free operation and uninhibited movement.
Simple single-knob gain corrections and flip up/power off display controls allow quick and covert viewing adjustments.
Specifiche
| Sensori e Ottiche | |
|---|---|
| Campo visivo | 51° |
| Conchiglia oculare [mm] | 17 mm |
| Controllo automatico luminosità | No |
| Cut_off luce intensa | Yes |
| Diametro pupilla uscita [mm] | - |
| Generazione IIT | Gen 3 Ghost ("Ghost" White Phosphor) |
| Illuminatore infrarossi | Yes (built-in with pivotal flood lens) |
| Ingrandimento | 1x standard (3x optional) |
| Messa a fuoco | 0.25 m to Infinity |
| Ottica sistema | F/1.26; 19 mm |
| Regolazione diottrie | -6 to +2 dpt |
| Risoluzione | - |
| Tipo fotocatodo | GaAs |
| Ambientali e Certificazioni | |
|---|---|
| Temperatura di esercizio | -40°C to +50°C (-40°F to +122°F) |
| Temperatura di stoccaggio | -50°C to +50°C (-58°F to +122°F) |
| Alimentazione | |
|---|---|
| Alimentazione | One AA (1.5 V) or 123A (3 V) |
| Autonomia della batteria | Up to 20 hours (up to 80 hrs with optional Battery Pack) at 20°C |
| Indicatore batteria bassa | Yes (In FOV) |
| Spegnimento automatico | Yes |
| Memorizzazione di file e Comunicazione | |
|---|---|
| Controllo remoto | - |
| UI-UX | |
|---|---|
| Colore reticolo | - |
| Controllo guadagno manuale | Yes |
| Indicatore IR | Yes (In FOV) |
| Panoramica sistema | |
|---|---|
| Altezza del mirino Asse sopra la guida | - |
| Garanzia | 2 Years |
| Regolazione Deriva_Alzo | - |
| Tipo di reticolo | - |
| Fisiche | |
|---|---|
| Dimensioni (L x P x A) | 157 × 124 × 78 mm (6.2 × 4.9 × 3.1 in) |
| Montaggio su treppiede | - |
| Peso | 0.61 kg (1.35 lbs) |
| Accessori | |
|---|---|
| Accessori inclusi | Packing Box, Soft Carrying Case, Lens Tissue, Quick Start Guide, NVG Interface Shoe (preinstalled), Bayonet/Horn Interface Shoe, Sacrificial Window (2), Demist Shield (2). |
| Accessori opzionali | 3x Afocal Lens Kit (includes 2 lenses) , Battery Pack #206 (Includes: Battery Pack Bracket #231, Nylon Bag), Battery Pack Kit (Includes: Battery Pack #206 w/ Battery Pack Bracket #231and Nylon Bag, NVG Interface Shoe with Connector #212, Battery Locking Plate, Battery Locking Plate Adapter #213, NVG Interface Shoe with Connector #212, Goggle Kit for BNVD (Includes: Goggle Kit #205, Adapter #224), Helmet Mount Kit for BNVD (Includes: Helmet Mount #3, Adapter #224), Tactical Goggle Kit for BNVD (Includes: Wilcox L4 G24 w/ Low Profile Breakaway mount, Wilcox 3 Hole Shroud, Wilcox Lanyard, Crye Precision Head Cap),Mil-Standard Hard Shipping/Storage Case #101. |
