Discontinued

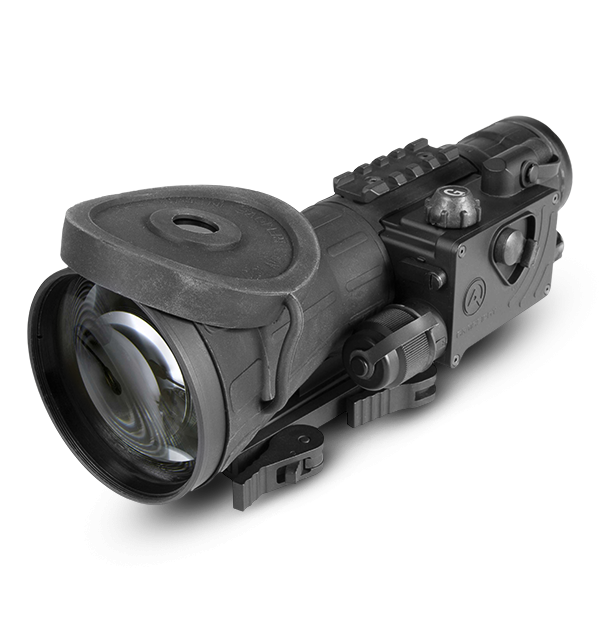

FLIR CO-LR-LRF

108 mm Night Vision Clip-On System

Designed for long-range target detection and engagement, the FLIR CO-LR-LRF adds high-performance night vision to any standard day scope. Using an existing ballistic reticle for shot placement, the CO-LR-LRF provides immediate precision by quickly mounting in front of day optics—no rezeroing needed. Variable gain control and included XLR IR illuminator further enhance imaging in challenging light conditions.

Unwavering Precision After Dark

108 mm lens and Gen 2+/Gen 3 intensifier tubes capture excellent night vision downrange.

Front-mounting allows consistent ballistic reticle use, eliminating the need to rezero, and maintains familiar shooting position.

Quick-release Picatinny mounting ensures proper rail position and installs in seconds—no tools required.

Specifiche

Sensori e Ottiche
Campo visivo	9°
Conchiglia oculare [mm]	-
Controllo automatico luminosità	Yes
Cut_off luce intensa	Yes
Diametro pupilla uscita [mm]	50 mm
Generazione IIT	Gen 3 Ghost ("Ghost" White Phosphor) MG
Illuminatore infrarossi	Detachable Long Range IR
Ingrandimento	1× (recommended to use with up to 12x day time optics)
Messa a fuoco	25 m to Infinity
Ottica sistema	F/1.54; 108 mm
Regolazione diottrie	-
Risoluzione	47-57 lp/mm
Tipo fotocatodo	GaAs

Ambientali e Certificazioni
Temperatura di esercizio	-40°C to +50°С (-40°F to +122°F)
Temperatura di stoccaggio	-50°C to +70°С (-58°F to +158°F)

Alimentazione
Alimentazione	CR123 Lithium 3V (1) or AA Alkaline 1.5V (1) or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1)
Autonomia della batteria	Up to 45 hours
Indicatore batteria bassa	Yes (in FOV)
Spegnimento automatico	Yes

Memorizzazione di file e Comunicazione
Controllo remoto	Wireless

UI-UX
Colore reticolo	-
Controllo guadagno manuale	Yes
Indicatore IR	No

Panoramica sistema
Altezza del mirino Asse sopra la guida	40 mm
Garanzia	2 Years
Regolazione Deriva_Alzo	-
Tipo di reticolo	-

Fisiche
Dimensioni (L x P x A)	240 х 97 х 87 mm (9.4 х 3.8 х 3.4 in)
Montaggio su treppiede	-
Peso	1.1 kg (2.4 lbs)

Accessori
Accessori inclusi	Battery adapter CR123A 3V / AA 1.5V, XLR-IR850 Detachable X-Long Range Infrared Illuminator, Adjustment-Control-DeviceBattery, Picatinny adapter for AWReC (Advanced Wireless Remote Control), AWReC (Advanced Wireless Remote Control) #94, Instruction Manual with Warranty Card, Special Wrench, Light-Suppressor, Soft carrying Case, Packing Box, Lens Tissue
Accessori opzionali	Extended Rail Adapter #85, FSRS (Front Scope Rail System) #38, Mil-Standard Hard Shipping/Storage Case #102, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, AMRF2200 - Advanced Modular Range Finder
