Discontinued

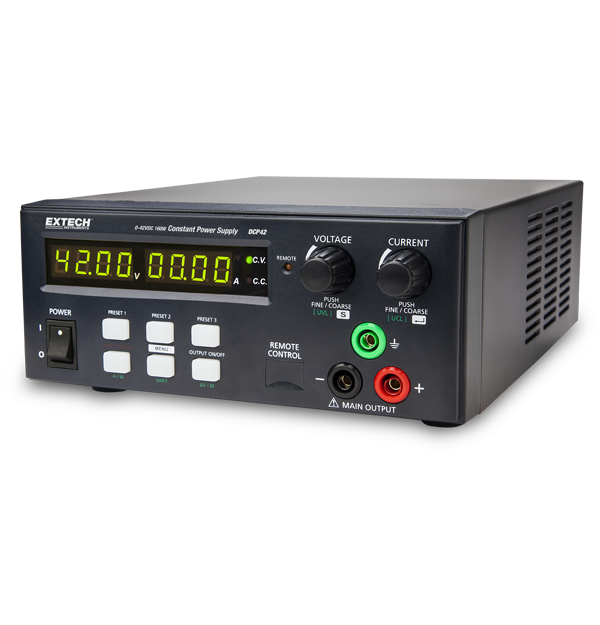

Extech DCP42
160W Switching Power Supply
The Extech DCP42 is a 160 W Switching Power Supply. The single-output, continuous power supply with USB offers high efficiency electrical power conversion for greater energy conservation and lighter weight. Complete with power cord, software, and USB cable. Software includes DC ramp and waveform generator.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base corrente in uscita | ±(0.2% + 5 counts) |
| Accuratezza di base tensione in uscita | ±(0.2% + 5 counts) |
| Corrente in uscita | 0 to 10A |
| Regolazione corrente di carico | ≤0.5% (10-90% rated voltage) |
| Regolazione corrente di linea | ≤0.1% (90-264V AC) |
| Regolazione tensione di carico | ≤0.15% (10-100% rated current) |
| Regolazione tensione di linea | ≤0.02% (90-264V AC) |
| Ripple e rumore | ≤5m Vrms, ≤50m Vp-p |
| Tensione uscita | 0 to 42V |
| Ulteriori dettagli | |
|---|---|
| Certificazioni | CE |
| Dimensioni | 7.9 × 3.7 × 9.5" (200 × 95 × 245mm) |
| Garanzia | 2 years |
| Peso | 5lbs (2.3kg) |
Risorse e supporto
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech DCP42 DCP60 Software
User Manual
Manuale utente Extech DCP42
Datasheet
Extech DCP42 Datasheet
Certification
Extech DCP42 Declaration of Conformity
User Manual
Extech DCP42 User Manual
Export Restrictions
