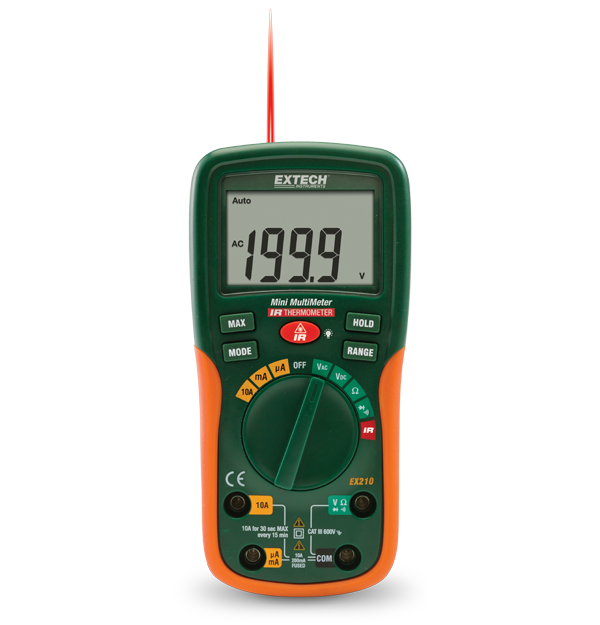

Extech EX210
8 Function Mini Digital MultiMeter with IR Thermometer
The Extech EX210 is a Mini Digital MultiMeter with a built in IR Thermometer. The meter can quickly identify overheating motors and locate hot spots on electrical panels or HVAC vents without contact. It measures AC/DC voltage, AC/DC current, resistance, and temperature (IR). The EX210’s rugged design incorporates a 2000 count large backlit dual LCD with easy to read digits, low current capability measure down to 0.1 µA, and input fuse protection. This meter also features max hold and data hold capabilities as well as auto power off. The EX210 comes complete with test leads and a 9 V battery.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base temperatura (IR) | -5 to 446 °F (-20 to 230 °C) |
| Accuratezza di base tensione CC | ±0.5% |
| Continuità | Yes |
| Corrente AC | 0.1 µA to 10A |
| Corrente DC | 0.1 µA to 10A |
| Resistenza | 0.1Ω to 20MΩ |
| Tensione AC | 0.1mV to 600V |
| Tensione DC | 0.1mV to 600V |
| Test diodi | Yes |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 1 × 9V battery |
| Categoria di sicurezza | CATIII - 600V |
| Certificazioni | CE, ETL |
| Dimensioni | 5.8 × 2.9 × 1.6" (147 × 76 × 42mm) |
| Garanzia | 2 years |
| Peso | 9.17oz (260g) |
Resources & Support
User Manual
Manuale utente Extech EX210 EX210T
User Manual
Extech EX210 EX210T User Manual
Certification
Extech EX210 Declaration of Conformity
Datasheet
Extech EX210 Datasheet
