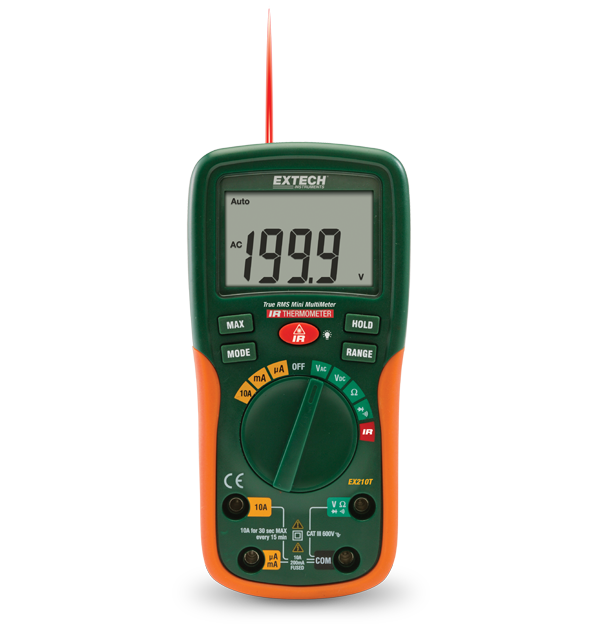

Extech EX210T
TrueRMS Digital Multimeter with IR
The Extech EX210T is a TrueRMS Digital Multimeter with IR. The meter auto ranges and has a 2000 count large LCD display. It measures AC/DC voltage and current, resistance, and temperature (IR). Its True RMS measurements make this meter more accurate and reliable when measuring distorted waveforms, and its built in IR thermometer has a 4:1 distance to target ratio, visually aided by the built in laser pointer. This meter has a CAT III 600 V safety rating and is complete with a year warranty, test leads, and a 9 V battery.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base temperatura (IR) | -5 to 446 °F (-20 to 230 °C) |
| Accuratezza di base tensione CC | ±0.5% |
| Continuità | Yes |
| Corrente AC | 10A |
| Corrente DC | 10A |
| Resistenza | 20MΩ |
| Risoluzione max corrente CA | 0.1µA |
| Risoluzione max corrente CC | 0.1µA |
| Risoluzione max resistenza | 0.1Ω |
| Risoluzione max tensione CA | 0.1mV |
| Risoluzione max tensione CC | 0.1mV |
| Temperatura (RTD) | 0.1°F/°C |
| Tensione AC | 600V |
| Tensione DC | 600V |
| Test diodi | Yes |
| True RMS | Yes |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 1 × 9V battery |
| Categoria di sicurezza | CATIII - 600V |
| Certificazioni | CE, ETL |
| Dimensioni | 5.8 × 2.9 × 1.6" (147 × 76 × 42mm) |
| Garanzia | 2 years |
| Peso | 9.17oz (260g) |
Resources & Support
User Manual
Manuale utente Extech EX210 EX210T
User Manual
Extech EX210 EX210T User Manual
Certification
Extech EX210T Declaration of Conformity
Datasheet
Extech EX205T EX210T Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
