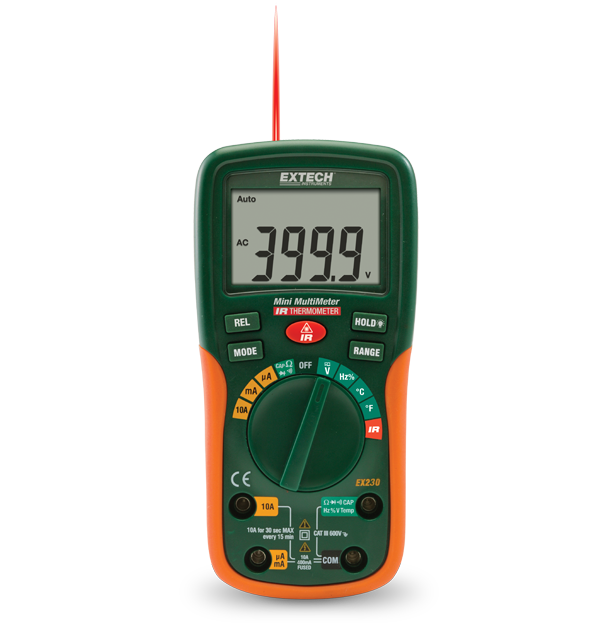

Extech EX230
12 Function Mini Digital MultiMeter with IR Thermometer
The Extech EX230 Mini Digital MultiMeter with built-in IR Thermometer can quickly identify overheating motors and locate hot spots on electrical panels or HVAC vents without contact. The EX230’s rugged design incorporates a 4000 count large backlit dual LCD with easy to read digits, low current capability measure down to 0.1 µA, and input fuse protection. The built in IR Thermometer has a 6:1 distance to target ratio. This meter also features Type K temperature, frequency, capacitance, and duty cycle measurement. It also has relative function, data hold capabilities, and an auto power off function. The EX230 comes complete with test leads, Type K Temperature bead probe, and a 9 V battery.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base temperatura (IR) | -5 to 446°F (-20 to 230°C) |
| Accuratezza di base tensione CC | ±0.5% |
| Capacità | 0.01nF to 100µF |
| Ciclo di lavoro | 0.1% to 99.9% |
| Continuità | Yes |
| Corrente AC | 0.1µA to 10A |
| Corrente DC | 0.1µA to 10A |
| Frequenza | 0.001Hz to 10MHz |
| Resistenza | 0.1Ω to 40MΩ |
| Risoluzione max temperatura (tipo K) | -4 to 1400°F (-20 to 760°C) |
| Tensione AC | 0.1mV to 600V |
| Tensione DC | 0.1mV to 600V |
| Test diodi | Yes |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 1 × 9V battery |
| Categoria di sicurezza | CATIII - 600V |
| Certificazioni | CE |
| Dimensioni | 5.8 × 2.9 × 1.6" (147 × 76 × 42mm) |
| Display | 4000-count segment LCD |
| Garanzia | 2 years |
| Peso | 9.17oz (260g) |
Resources & Support
User Manual
Manuale utente Extech EX230
User Manual
Extech EX230 User Manual
Certification
Extech EX230 Declaration of Conformity
Datasheet
Extech EX230 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
