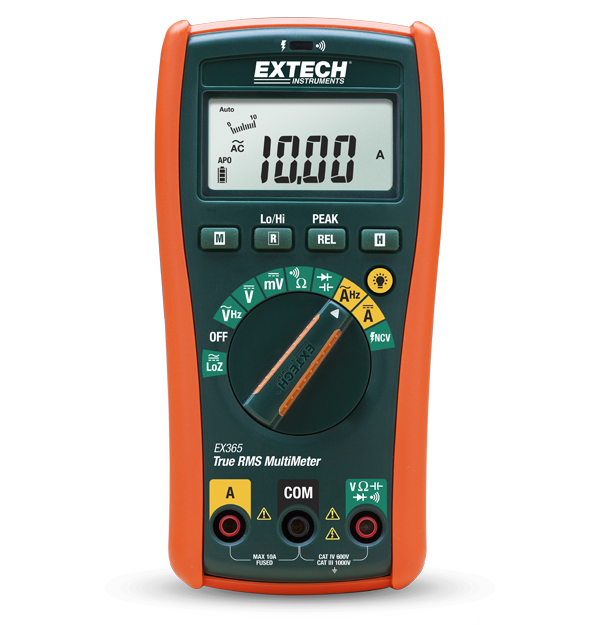

Extech EX365
10 Function True RMS Multimeter
The Extech EX365 is a compact, industrial True RMS Multimeter with a built in non-contact voltage detector. It features highly accurate True RMS measurements, LoZ for the prevention of false readings caused by ghost voltages, .5 % basic accuracy, a 1000 V AC/DC volt range, and resistance up to 40 MΩ. It also has a continuity beeper with visual alert, smart data hold, peak hold, auto power off with disable, relative mode for capacitance zero, and offset adjustment. Additionally, the EX365 excels in frequency and capacitance measurements as well as commercial applications that require AC/DC current measurements from 1 mA to 10 A. Complete with test leads, 9 V battery, holster with tilt stand, and built-in magnet.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base tensione CC | 0.5% |
| Capacità | 1nF to 10mF |
| Continuità | Yes |
| Corrente AC | 1mA to 10A |
| Corrente DC | 1mA to 10A |
| Frequenza | 0.01Hz to 100kHz |
| Resistenza | 0.1Ω to 40MΩ |
| Rilevatore di tensione senza contatto (NCV) | Yes |
| Tensione AC | 0.1mV to 1000V |
| Tensione DC | 0.1mV to 1000V |
| Test diodi | Yes |
| True RMS | Yes |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 1 × 9V battery |
| Categoria di sicurezza | CATIV - 600V |
| Certificazioni | CE, UL |
| Dimensioni | 6.5 × 3.2 × 1.7" (164 × 82 × 44mm) |
| Garanzia | 3 years |
| Peso | 5.9oz (450g) |
Resources & Support
Certification
Extech EX365 Declaration of Conformity
Datasheet
Extech EX36x Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
