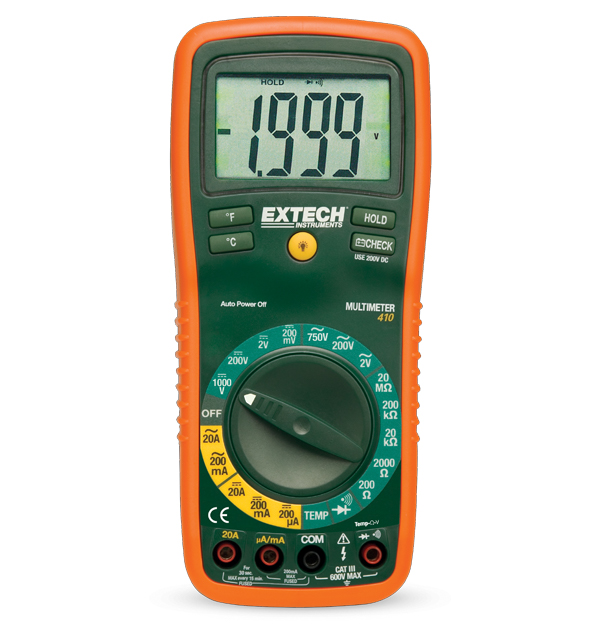

Extech EX410
8 Function Professional MultiMeter
Compact and powerful, the Extech EX410 8 Function true RMS Professional MultiMeter provides the versatility of multiple meters in one convenient device. The EX410 measures AC/DC voltage and current, resistance, diode, and temperance. A large, backlit display and 2.5 cm (1 in) high digits allow for easy reading, while the ergonomically designed housing offers comfortable, one-handed operation. Comes with the multimeter, CAT III test leads, stand, hanging strap, holster with built-in test lead storage, Type K bead wire temperature probe, and one 9 V battery.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base tensione CC | ±0.5% |
| Continuità | Yes |
| Corrente AC | 0.1µA to 20A |
| Corrente DC | 0.1µA to 20A |
| Resistenza | 0.1Ω to 20MΩ |
| Risoluzione max temperatura (tipo K) | -4 to 1382°F (-20 to 750°C) |
| Tensione AC | 1mV to 750V |
| Tensione DC | 0.1mV to 1000V |
| Test diodi | Yes |
| True RMS | Yes |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 1 × 9V battery |
| Categoria di sicurezza | CATIII - 600V, CATIV - 1000V |
| Certificazioni | UL |
| Dimensioni | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
| Garanzia | 2 years |
| Peso | 0.75lbs (342g) |
Resources & Support
User Manual
Manuale utente Extech EX410
User Manual
Extech EX410 User Manual
Datasheet
Extech EX4xx Datasheet
