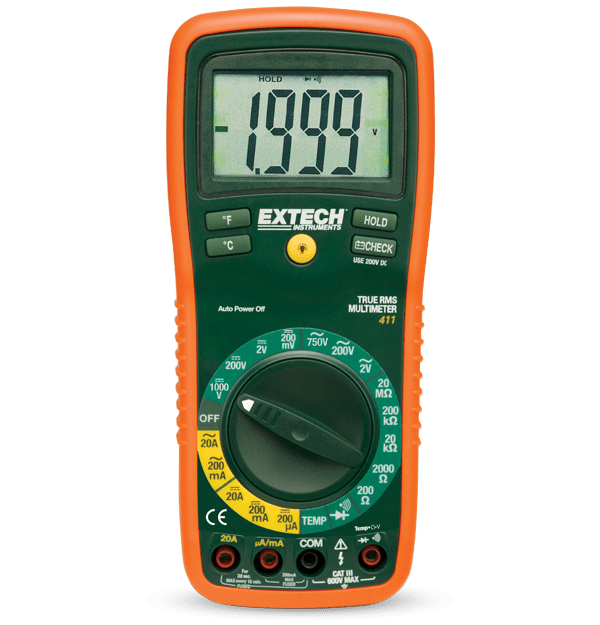

Extech EX411
8 Function True RMS Professional MultiMeter
The Extech EX411 offers multiple functions so you can carry one meter into the field instead of several. The manual ranging EX411 measures AC/DC voltage and current, resistance, diode, and continuity, all with ± 0.5 percent basic accuracy. The unit has low current capability, measuring down to 0.1 µA, and features input fuse protection and misconnection warnings. A Type K thermometer is built in for surface or air temperature measurements. Comes with CAT III test leads, stand, hanging strap, holster with builti n test lead storage, Type K bead wire temperature probe, and battery.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base corrente CA | ±0.5% |
| Accuratezza di base corrente CC | ±0.5% |
| Accuratezza di base tensione CA | ±0.5% |
| Accuratezza di base tensione CC | ±0.3% |
| Continuità | Yes |
| Corrente AC | 0.1mA to 20A |
| Corrente DC | 0.1µA to 20A |
| Resistenza | 0.1Ω to 20MΩ |
| Risoluzione max temperatura (tipo K) | -4 to 1382 °F (-20 to 750 °C) |
| Tensione AC | 1mV to 750V |
| Tensione DC | 0.1mV to 1000V |
| Test diodi | Yes |
| True RMS | Yes |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 1 × 9V battery |
| Categoria di sicurezza | CATIII - 600V, CATIV - 1000V |
| Certificazioni | UL |
| Dimensioni | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
| Garanzia | 2 years |
| Peso | 0.75lbs (342g) |
Resources & Support
User Manual
Manuale utente Extech EX411
User Manual
Extech EX411 User Manual
Datasheet
Extech EX4xx Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
