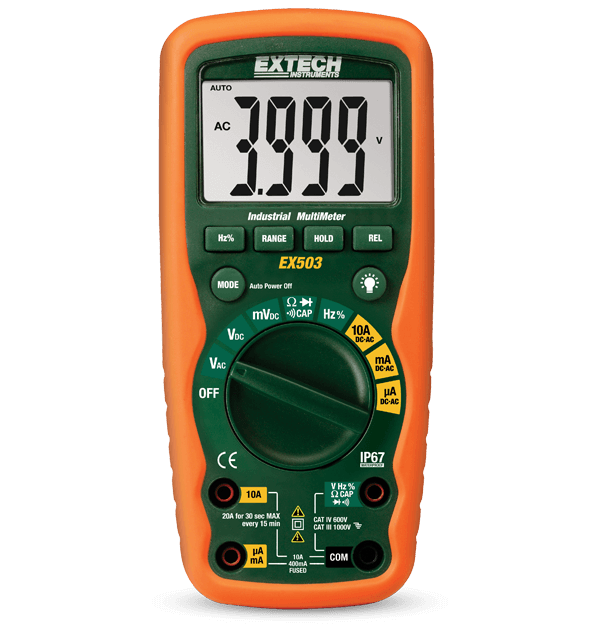

Extech EX503
10 Function Heavy Duty Industrial MultiMeter
The Extech EX503 offers an array of must-have multimeter measurements including capacitance, frequency (dual sensitivity for electrical and electronic applications), diode test, and continuity. Other features include data hold and relative hold, and manual or auto-ranging modes. The latter automatically adjusts the measurement range based on the detected source such as electrical components and electronic equipment. The meter features 0.5 percent accuracy and a CAT IV-600-volt safety rating, protecting users even on outdoor wiring. Includes double-molded test leads, magnetic hanging strap, 9-volt battery, carrying case, and user manual.
Specifiche
| Specifiche generali | |
|---|---|
| Capacità | 0.01nF to 100ΩF |
| Ciclo di lavoro | 0.1 to 99.9% |
| Continuità | Yes |
| Corrente AC | 0.1µA to 10A |
| Corrente DC | 0.1µA to 10A |
| Frequenza | Electrical: 5Hz to 1kHz, Electronic: 0.001Hz to 10 MHz |
| Resistenza | 0.1Ωto 40MΩ |
| Tensione AC | 0.1mV to 1000V |
| Tensione DC | 0.1mV to 1000V |
| Test diodi | Yes |
| True RMS | Yes |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 1 × 9V battery |
| Categoria di sicurezza | CATIII - 1000V, CATIV - 600V |
| Certificazioni | CE, UL, NIST |
| Classificazione IP | IP67 |
| Dimensioni | 7.25 × 3.25 × 2.25" (184 × 83 × 57mm) |
| Display | 4000-count segment LCD |
| Garanzia | 3 years |
| Peso | 12.3oz (349g) |
Resources & Support
User Manual
Manuale utente Extech EX503
User Manual
Extech EX503 User Manual
Certification
Extech EX503 Declaration of Conformity
Datasheet
Extech EX5xx Datasheet
