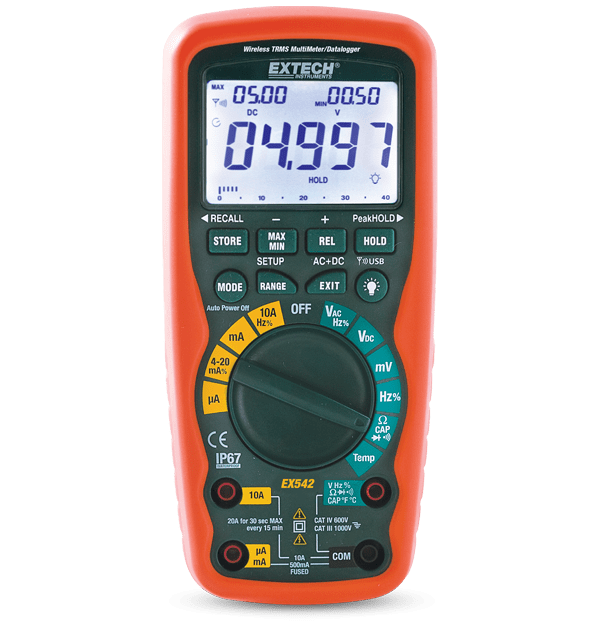

Extech EX542
12 Function Wireless True RMS Industrial MultiMeter/Datalogger
The Extech EX542 offers wireless connectivity to your laptop or PC using a USB receiver with a range comparable to Bluetooth (10 m/33 ft.). The EX542 transmits real-time data for monitoring, trending, and analysis (using the included software) on one of two available frequencies (433 MHz). Now electrical professionals can monitor and data log readings at a safe distance from hazardous locations. Additionally, it is easier to perform remote tasks such as powering up a device from a control panel that is not nearby. From a time-saving perspective for laptop users, the EX542 permits a user to set up their laptop at a centralized location and then sequentially data log readings throughout a site without having to relocating the laptop. In addition to wireless data logging, the EX542 can log up to 9,999 readings internally and also read voltage, current, resistance, capacitance, frequency (with dual-range sensitivity for electrical and electronic work), duty cycle, continuity, diode testing, and even temperature using its Type K thermistor bead probe. Complete with double-molded test leads, USB wireless receiver, temperature probe, magnetic hanging strap, 9 V battery, and carrying case.
Specifiche
| Specifiche generali | |
|---|---|
| Capacità | 0.001nF to 40mF |
| Ciclo di lavoro | 0.1 to 99.90% |
| Continuità | Yes |
| Corrente AC | 0.01µA to 20A |
| Corrente DC | 0.01µA to 20A |
| Frequenza | Electrical: 40Hz to 4kHz, Electronic: 0.001Hz to 100MHz |
| Frequenza di trasmissione wireless | 433MHz |
| Resistenza | 0.01Ω to 40MΩ |
| Risoluzione max temperatura (tipo K) | -58 to 1382°F (-50 to 750°C) |
| Tensione AC | 0.01mV to 1000V |
| Tensione DC | 0.01mV to 1000V |
| Test diodi | 2.8V |
| True RMS | Yes |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 1 × 9V battery |
| Categoria di sicurezza | CATIV - 600V |
| Certificazioni | CE, FCC |
| Classificazione IP | IP67 |
| Dimensioni | 7.25 × 3.25 × 2.25" (184 × 83 × 57mm) |
| Display | 40000-count segment LCD |
| Garanzia | 3 years |
| Peso | 12.3oz (349g) |
Resources & Support
User Manual
Manuale utente Extech EX542
User Manual
Extech EX542 User Manual
Datasheet
Extech EX540-EX542 Datasheet
