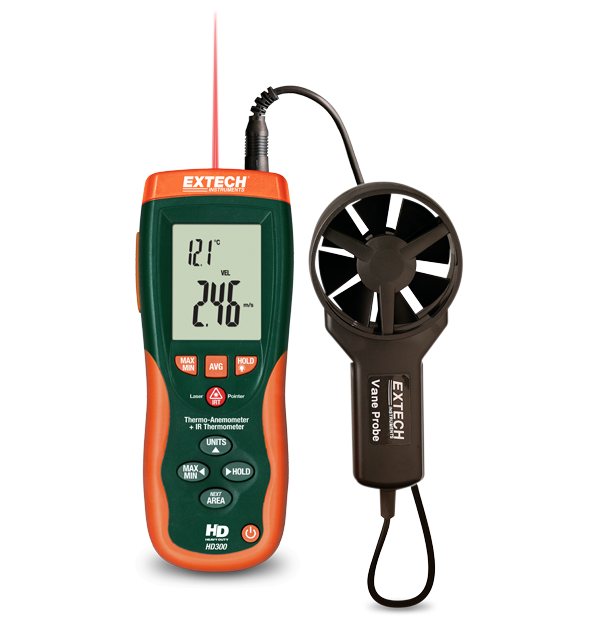

Extech HD300
CFM/CMM Thermo-Anemometer with built-in InfraRed Thermometer
The Extech HD300 is a Thermo-Anemometer with an Infrared Thermometer that measures remote surface temperatures to 500°C (932°F) with a 30:1 distance to target ratio and laser pointer. It can simultaneously display air flow in CFM/CMM or air velocity, plus ambient temperature. This meter has easy to set area dimensions that are stored in the meter's internal memory for the next power on. Additional features include a 9999 count LCD backlit display, 20 point average for airflow, and a heavy duty rugged double molded housing. Comes complete with a vane sensor with 120 cm (3.9 ft) cable, software with cable, carrying case, and 9 V battery.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base temperatura (aria) | ±4°F (2°C) |
| Accuratezza di base temperatura (IR) | -58 to 932°F (-50 to 500°C) |
| Accuratezza di base velocità aria (ft/min) | ±3% |
| Accuratezza di base velocità aria (km/h) | ±3% |
| Accuratezza di base velocità aria (m/s) | ±3% |
| Accuratezza di base velocità aria (mph) | ±3% |
| Accuratezza di base velocità aria (nodi) | ±3% |
| Risoluzione max (CFM) volume aria | 0.1CFM |
| Risoluzione max (CMM) volume aria | 0.1CMM |
| Risoluzione max temperatura (IR) | ±2% |
| Temperatura (aria) | 14 to 140°F (-10 to 60°C) |
| Velocità aria (ft/min) | 80 to 5900 ft/min |
| Velocità aria (km/h) | 1.4 to 108.0 km/h |
| Velocità aria (m/s) | 0.4 to 30.00 m/s |
| Velocità aria (mph) | 0.9 to 67.0 MPH |
| Velocità aria (nodi) | 0.8 to 58.0 knots |
| Volume aria (CFM) | 0 to 999900 CFM |
| Volume aria (CMM) | 0 to 999900 CMM |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 1 × 9V battery |
| Certificazioni | CE |
| Dimensioni | 8 × 3 × 1.9" (203 × 75 × 50mm) |
| Garanzia | 3 years |
| Peso | 9.8oz (280g) |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech HD300 Software
User Manual
Manuale utente Extech HD300
User Manual
Extech HD300 User Manual
Certification
Extech HD300 Declaration of Conformity
Datasheet
Extech HD300 Datasheet
