New
Flir i34
App-Enabled Thermal Camera
Top application
- Asset Reliability
- Building Diagnostics & Indoor Air Quality
- Electrical Inspection
- Mechanical Inspection

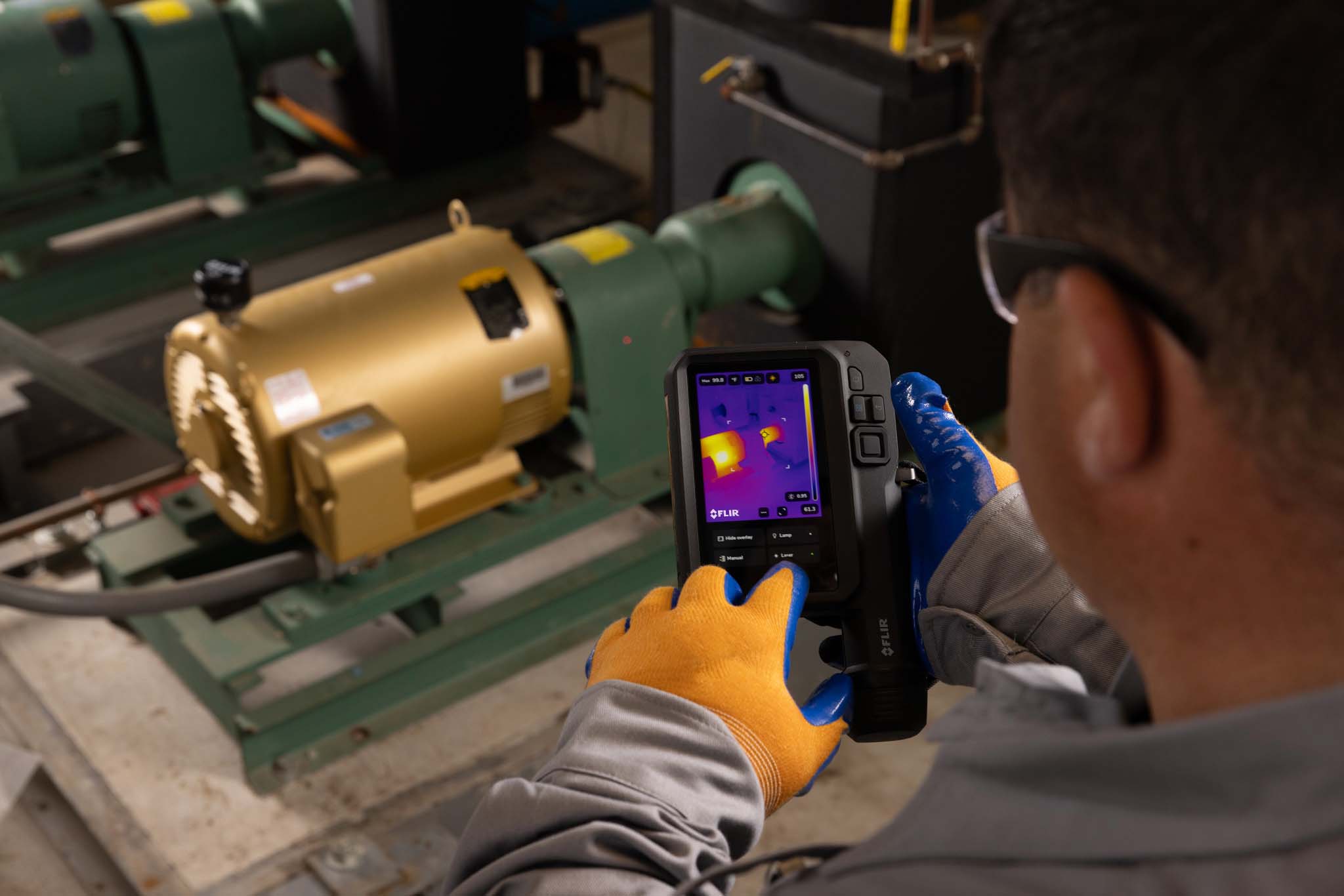

The Flir i34 is the smart, scalable way to bring thermography to more people across your team—without compromising on consistency or control. With 240 × 320 thermal resolution and the power of the Flir ACE platform, the i34 transforms inspections into app-guided, repeatable workflows that anyone can follow—helping you capture the right data, in the right place, at the right time.
The i34 supports fully guided inspection routes, on-camera fault detection, baseline image comparison, and direct integration with Flir Assetlink and Ignite. Whether you're expanding your predictive maintenance program or reducing reliance on paper-based reporting, the i34 helps standardize inspections and eliminate guesswork—no matter the user’s experience level.
With a wide field of view, glove-friendly controls, and cybersecure data transfer behind your IT firewall, the i34 is your entry point to smarter, more connected thermography—designed to scale with your goals, not your workload.
With the advantage of Flir, 3rd-party, and custom apps, iXX-Series cameras simplify inspections and improve workflow for increased productivity. Apps can reduce the steps between data gathering and consumption, letting you work the way that makes the most sense for your organization.
On-board apps can flatten the learning curve, provide safety information, host training, and offer remote support so inexperienced users can perform expert-level inspections.
Flir iXX cameras can host a range of apps—Flir-made, 3rd-party, and custom—designed to address communication, documentation or decision-making needs.
Specifiche
| Highlighted | |
|---|---|
| Risoluzione IR | 240 × 320 |
| Sensibilità termica/NETD | <40 mK at 30°C (86°F) |
| Accuratezza | ±2°C (±3.6°F) or ±2% |
| Campo visivo (FOV) | 38° × 49° |
| Fotocamera digitale | 8 MP, Autofocus |
| Modalità immagine | MSX®, Thermal, Picture-in-Picture, Digital camera |
| Supporto di memorizzazione | Internal memory, onboard Flir Ignite cloud and Assetlink connectivity |
| Dati ottici e immagine | |
|---|---|
| Allineamento laser | Position of laser pointer automatically displayed on the infrared image |
| Banda spettrale | 7.5 to 13 µm |
| Campo visivo (FOV) | 38° × 49° |
| Colore | Black |
| Distanza minima di messa a fuoco | 0.5 m |
| Fotocamera digitale | 8 MP, Autofocus |
| FOV Fotocamera digitale | 50.5° × 64.5° |
| Frequenza immagine | 30 Hz |
| Messa a fuoco | Fixed focus |
| Modalità immagine | MSX®, Thermal, Picture-in-Picture, Digital camera |
| numero f | 1.4 |
| Regolazione automatica dell’immagine | Yes |
| Regolazione manuale dell’immagine | Yes |
| Risoluzione display | 720 × 1280 |
| Risoluzione IR | 240 × 320 |
| Risoluzione spaziale (IFOV) | 2.9 mrad |
| Sensibilità termica/NETD | <40 mK at 30°C (86°F) |
| Tavolozze colori | Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC |
| Tipo display | 5 in. color LCD |
| Misurazioni e analisi | |
|---|---|
| Accuratezza | ±2°C (±3.6°F) or ±2% |
| Correzione emissività | Variable from 0.1 to 1.0 |
| Correzioni misurazione | Emissivity, matt/semi-matt/semi-gloss + custom value, reflected apparent temperature, atmospheric compensation |
| Delta T | Yes, NFPA 70B compliant |
| Dimensioni camera (L × P × A) | 225 × 136 × 73 mm (8.9 × 5.4 × 2.9 in) |
| Isoterme | Above, Below |
| Peso camera con batteria | 0.8 kg (1.76 lb) |
| Puntatore a spot | Center spot, box with min./max. |
| Range di temperature oggetto | -20°C to 200°C (-4°F to 392°F) 10°C to 450°C (50°F to 842°F) |
| Interfaccia utente | |
|---|---|
| Testo | Text annotation on image using onscreen keyboard |
| Touchscreen | Capacitive touch |
| Comunicazione e Memorizzazione dati | |
|---|---|
| Formati file | Standard JPEG, 14-bit measurement data included |
| Funzionamento AC | Optional accessory: 45 W AC adapter, 100 V to 240 V AC input, 15 V DC, 3 A output to camera |
| Interfaccia | USB-C: Data transfer to and from PC and Mac device Display port over USB-C |
| Supporto di memorizzazione | Internal memory, onboard Flir Ignite cloud and Assetlink connectivity |
| Wi-Fi | IEEE 802.11 a/ac/b/g/n (2.4 and 5 GHz) |
| Alimentazione | |
|---|---|
| Autonomia della batteria | 4 hours at 25°C (77°F) ambient temperature and typical use |
| Gestione alimentazione | Automatic shut-down |
| Sistema di carica | Battery is charged inside the camera or in specific charger (included) |
| Tempo di carica | 2 hours in charger / 4 hours to 90% capacity in camera |
| Tipo batteria | Rechargeable Lithium-ion battery |
| Ambientali e Certificazioni | |
|---|---|
| Cadute | 2 m (6ft 7 in) |
| Classificazione laser | Class 2 |
| EMC | EN 301 489-1, EN 301 489-17, EN 61000-6-3, EN 61000-6-2, FCC 47 CFR Part 15 Class B |
| Impatti | 25 g (IEC 60068-2-27) |
| Protezione | IP54 (IEC 60529) |
| Range di temperature di esercizio | -15°C to 50°C (5°F to 122°F) |
| Range di temperature di stoccaggio | -40°C to 70°C (-40°F to 158°F) |
| Spettro radio | ETSI EN 300 328 ETSI EN 301 893 FCC 47 CFR part 15 RSS-247 |
| Tabella emissività | Emissivity table of predefined materials |
| Umidità | IEC 60068-2-30/24 h 95% relative humidity |
| Vibrazione | 2 g (IEC 60068-2-6) |
| Generali | |
|---|---|
| Illuminatore | Manually activated bright LED |
| La confezione comprende | Infrared camera with battery Extra battery Battery charger USB-C cable Printed documentation Hard transport case Wrist strap |
