Discontinued

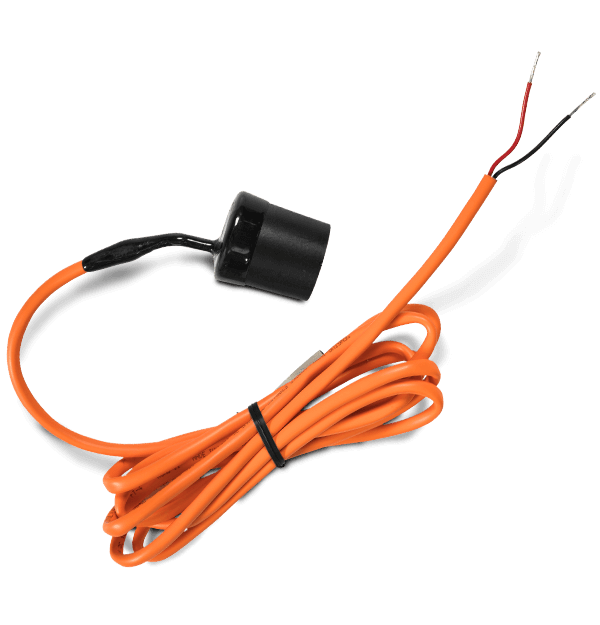

intelliRock III Maturity Logger
Real-Time Concrete Strength Logger
intelliRock Maturity Loggers analyze the time and temperature profile of in–place concrete to calculate its strength in real–time with the push of a button. The maturity loggers are based on ASTM C 1074 "Standard Practice for Estimating Concrete Strength by the Maturity Method."
Document Early Strength and Temperature Information
Speed up concrete operations and extend the construction calendar in cooler weather
Improve quality control with early validation of batching consistency while decreasing labor and material costs
The logger stores the current maturity and temperature value every minute for 180 days
Specifiche
| Misurazioni e analisi | |
|---|---|
| Accuratezza temporale | 1 minute per month |
| Curva di calibrazione | Holds 5 calibration curves for strength conversions |
| Frequenza di misurazione di temperatura | 1 minute (resolution for min/max) |
| ID seriale univoco | Yes |
| Maturità del periodo di integrazione | 1 minute |
| Memoria dati | 999 logger downloads |
| Ora | Yes |
| Periodo d'esercizio | 180 days |
| Range massimo di misurazione di temperatura | -20°C to 125°C (-4°F to 257°F) |
| Risoluzione di temperatura | 1°C |
| Scadenza | Yes |
| Sovraccarico range dose assorbita | 10 mSv/h to 500 mSv/h (1 rem/h to 50 rem/h) |
| Temperatura | Yes |
| Tempo di stoccaggio e temperatura massimi | 85°C (185°F) for 5 years |
| Test di lotti tracciabili NIST | Yes |
| Ambientali e Certificazioni | |
|---|---|
| Certificazioni e standard | ASTM C 1074 |
Export Restrictions
