Discontinued

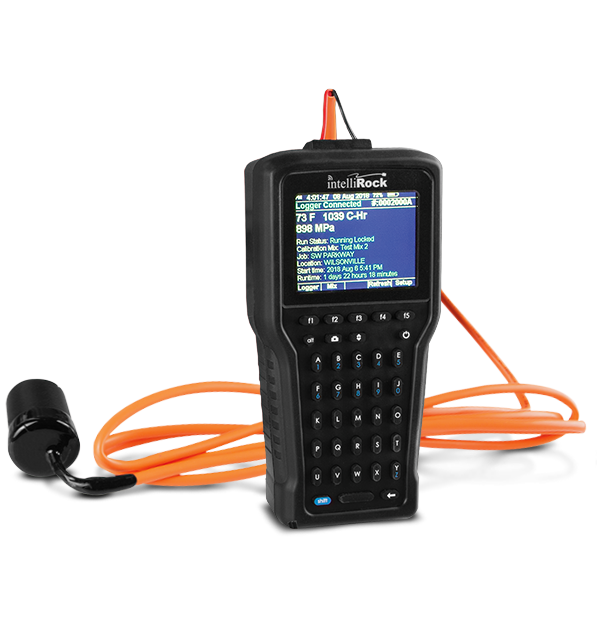

intelliRock III Reader
Concrete Strength and Temperature Profiling System
The intelliRock III reader provides connectivity to loggers in the field so critical decisions can be made at the touch of a button. You can easily activate loggers to start tracking key data points during concrete curing. It features a built–in thermal imager for temperature profiling and onsite problem detection. Use the reader to input important notes and jobsite or location information specific to that logger.
BUILD FASTER, STRIP FORMS EARLIER, OPTIMIZE POST-TENSION WORK
Use the built-in 160 × 120 resolution FLIR thermal imager to identify surface temperature issues and monitor insulation performance or cylinder curing conditions.
View stored temperature and strength data and record important notes in order to keep the project on track
Cut the time spent using equipment rentals, and reduce cement and labor costs
Specifiche
| Dati ottici e immagine | |
|---|---|
| Camera | 160 × 120 resolution thermal imager |
| Misurazioni e analisi | |
|---|---|
| Accuratezza temperatura | ±1°C, -20 to 80°C (4 to 176°F), ±2°C, 80 to 99°C (176 to 210.2°F) |
| Accuratezza temporale | 1 minute per month |
| Curva di calibrazione | Holds 5 calibration curves for strength conversions |
| Frequenza di misurazione di temperatura | 1 minute (resolution for min/max) |
| Memoria dati | 999 logger downloads |
| Ora | Yes |
| Range massimo di misurazione di temperatura | -20°C to 125°C (23°F to 257°F) |
| Risoluzione di temperatura | 1°C (1.8°F) |
| Scadenza | Yes |
| Sovraccarico range dose assorbita | 10 mSv/h to 500 mSv/h (1 rem/h to 50 rem/h) |
| Temp | Yes |
| Temperatura | Yes |
| Tempo di stoccaggio e temperatura massimi | 85°C (185°F) for 5 years |
| Comunicazione e Memorizzazione dati | |
|---|---|
| Interfaccia PC | USB and Bluetooth |
| Interfaccia utente | |
|---|---|
| Eventi | 6+ max and min temperature |
| Note | 8+ job site names and logger locations |
| Alimentazione | |
|---|---|
| Batteria | Rechargeable |
| Ambientali e Certificazioni | |
|---|---|
| Specifiche generali lettore Temp di esercizio | -5° to 50°C (23° to 122°F) |
| Temperatura di esercizio | -20°C to 99°C (-4°F to 210.2°F) |
