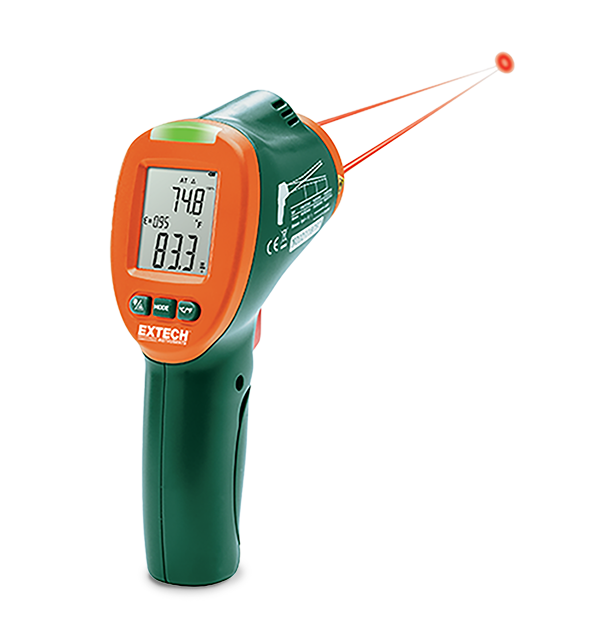

Extech IRT600
Dual Laser IR Thermal Condensation Scanner
The Extech IRT600 is a Dual Laser IR Thermal Condensation Scanner. This 12:1 infrared psychrometer with a 3 color LED dew point alarm measures temperature and humidity, then calculates dew point and warns the user when conditions for mold growth exist. It can be great for processes that require surface temperature control and monitoring. A green LED changes to yellow and then to red as the surface temperature reading gets closer to and then equals the calculated dew point reading. Dual lasers indicate ideal measuring distance where the two lasers converge to a 2.5 cm (1 in) target spot. Complete with case and 9 V battery.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base temperatura (aria) | |
| Accuratezza di base temperatura (IR) | -22 to 662 |
| Accuratezza di base umidità relativa | |
| Emissività | 0.95, fixed |
| Puntamento | dual laser |
| Punto di rugiada | -22 to 212 |
| Rapporto distanza/soggetto | 12:1 |
| Risoluzione max temperatura (aria) | 0.1 |
| Risoluzione max temperatura (IR) | |
| Temperatura (aria) | 32 to 122 |
| Temperatura (RTD) | 0.1 |
| Tempo di risposta | 150ms |
| Umidità relativa | 20 to 80% |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 1 × 9V battery |
| Certificazioni | CE, NIST (limited to certain functions) |
| Dimensioni | 6.6 × 3.2 × 2.3" (168 × 82 × 58mm) |
| Garanzia | 2 years |
| Peso | 5.7oz (163g) |
Resources & Support
User Manual
Manuale utente Extech IRT600
Certification
Extech IRT600 Declaration of Conformity
Datasheet
Extech IRT600 Datasheet
User Manual
Extech IRT600 User Manual
