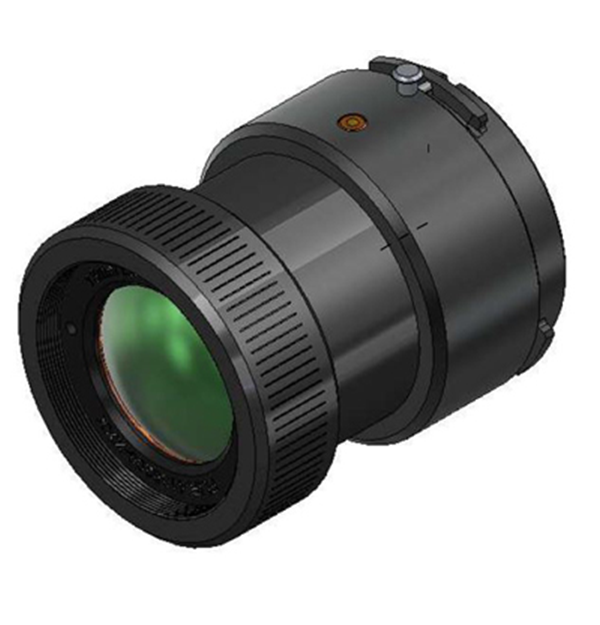

Obiettivo MWIR a messa a fuoco manuale da 13 mm (3-5 um) (4255676)

3-5 μm 13 mm f/2.5 FPO Manuale

13 mm MWIR (3-5 um) Messa a fuoco manuale f/2,5 Obiettivo con attacco a baionetta per l'uso su telecamere a infrarossi midwave (MWIR) ad alte prestazioni Flir, tra cui A67xx MWIR

Specifiche

Dati ottici e immagine
Banda spettrale Da 3 a 5 µ
Campo visivo (O & V & D) 40, 5 (H)
32, 9 (V)
50, 6 (D)
Diametro 57,2 mm (2,25 pollici)
Distanza iperfocale 2,8 m
Distorsione <1%
Lunghezza Fuori dalla termocamera: 67,1 mm ( 2,64 pollici)
Lunghezza focale 13 mm
Messa a fuoco Manuale
Messa a fuoco Da 100 mm a∞
numero f 2, 5
Ambientali e Certificazioni
Range di temperature di esercizio Da -20°C a 70°C (da 68°F a 158°F)
Range di temperature di stoccaggio Da -40°C a 85°C (da -40°F a 185°F)
Generali
Peso ~0,38 kg (0,84 libbre)
Trasmissione media 95%

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
