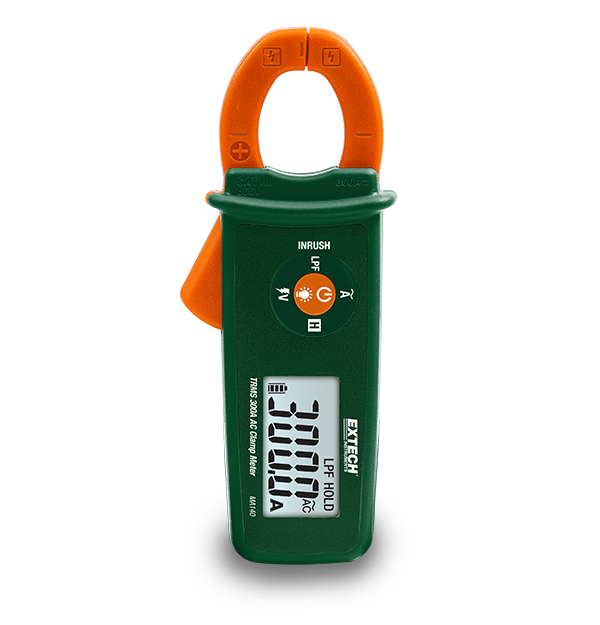

Extech MA140
True RMS 300A AC Clamp Meter
The Extech MA140 is a compact AC Clamp Meter with NCV detector. This clamp meter takes true RMS measurements for accurate readings of noisy, distorted, or non-sinusoidal waveforms. The MA140 can measure up to 300 A AC. Complete with carrying case and two LR44 batteries.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base corrente CA | ±2.0% |
| Corrente AC | 60A, 300A |
| Dimensione pinza | 0.8" (22mm), conductors up to 300MCM |
| Rilevatore di tensione senza contatto (NCV) | 80 to 600VAC |
| Risoluzione max corrente CA | 0.01A |
| True RMS | Yes |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 2 × LR44 (1.5V) batteries |
| Categoria di sicurezza | CATIII - 600V |
| Certificazioni | CE, UL, NIST |
| Dimensioni | 5.8 × 2.4 × 1.2" (147 × 60 × 31mm) |
| Garanzia | 2 years |
| Peso | 4.9oz (140g) |
Resources & Support
User Manual
Manuale utente Extech MA140
User Manual
Extech MA140 User Manual
Certification
Extech MA140 Declaration of Conformity
Datasheet
Extech MA140 MA145 Datasheet
