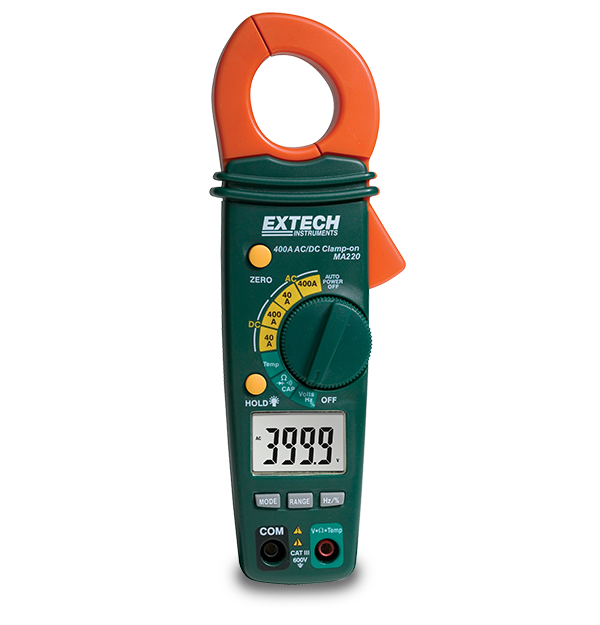

Extech MA220
400A AC/DC Clamp Meter
The Extech MA220 AC/DC Clamp Meter offers high accuracy current measurements and a compact size for measuring in tight locations. The MA220's functions include AC/DC voltage and current (600 V/400 A), capacitance (100 µF), frequency (150 kHz), temperature (-50°C to 1000°C/-58°F to 1830°F), and duty cycle (0.5% to 99.0%). It also has a 4,000 count LCD display, data hold, and auto zero on start up, as well as auto ranging and auto power off functions. This clamp meter has a 23 mm (0.9 in) jaw size that accommodates conductors up to 300 MCM. Comes with test leads, Type K bead wire temperature probe, case, two AAA batteries, and user guide.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base corrente CA | ±3% |
| Accuratezza di base corrente CC | ±2.5% |
| Accuratezza di base temperatura (tipo N) | 1°F/°C |
| Accuratezza di base tensione CA | 2% |
| Accuratezza di base tensione CC | ±1.5% |
| Capacità | 40nF, 400nF, 4µF, 40µF, 100µF |
| Ciclo di lavoro | 0.5 to 99.0% |
| Continuità | ≤30Ω Beeper |
| Corrente AC | 40A, 400A |
| Corrente DC | 40A, 400A |
| Dimensione pinza | 0.9" (23mm), conductors up to 300MCM |
| Frequenza | 5Hz, 50Hz, 500Hz, 5kHz, 150kHz |
| Resistenza | 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ |
| Risoluzione max capacità | 0.01nF |
| Risoluzione max ciclo di lavoro | 0.1% |
| Risoluzione max corrente CA | 0.01A |
| Risoluzione max corrente CC | 0.01A |
| Risoluzione max frequenza | 0.001Hz |
| Risoluzione max resistenza | 0.1Ω |
| Risoluzione max temperatura (tipo K) | -58 to 1830°F (-50 to 1000°C) |
| Risoluzione max tensione CA | 0.1mV |
| Risoluzione max tensione CC | 0.1mV |
| Tensione AC | 400mV, 4V, 40V, 400V, 600V |
| Tensione DC | 400mV, 4V, 40V, 400V, 600V |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 2 × AAA (1.5V) batteries |
| Categoria di sicurezza | CATIII - 600V |
| Certificazioni | CE, UL |
| Dimensioni | 7.9 × 2 × 1.4" (200 × 50 ×35mm) |
| Garanzia | 2 years |
| Peso | 7oz (200g) |
